Norma 1560005107 Cross Reference
Looking for Norma aftermarket 1560005107? It cross-references to OneTouch part OTX-4CT450S – Constant Torque Clamp HD 3.75 in to 4.63 in. Same size, same fit, supplied in single units or export cartons.

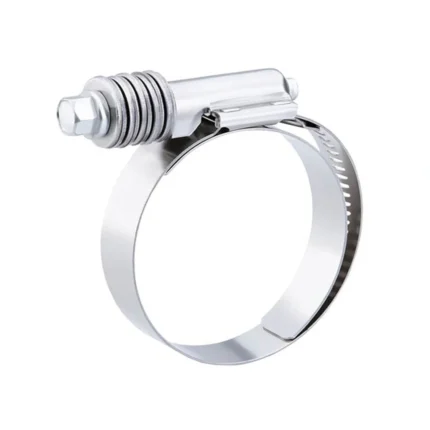

OneTouch replacement
Constant Torque Clamp HD 3.75 in to 4.63 in
Part No. OTX-4CT450S
- Clamping Range 3-3/4 in to 4-5/8 in (95–117 mm)
- Band Width 5/8 in
- Band Material 301 Stainless Steel
OTX-4CT450S specifications (replaces Norma 1560005107)
| Clamp Type | Heavy-Duty Constant Torque Clamp |
| Application | Coolant & Heater Hoses |
| Clamping Range | 3-3/4 in to 4-5/8 in (95–117 mm) |
| Hex Size | 3/8 in |
| Torque Rating | 92 in-lbs |
| SAE | 462 |
| Band Width | 5/8 in |
| Band Material | 301 Stainless Steel |
| Screw | 410 Stainless Steel | 3/8 in hex |
| Sold As | Each |
Where the Norma 1560005107 clamp is used
Constant torque clamps have a spring washer stack that keeps the clamp tight as the hose expands when hot and shrinks when cold, so coolant and heater lines do not seep after a cold start. OTX-4CT450S is used on coolant & heater hoses.
Other part numbers that match OTX-4CT450S
11 more OEM and aftermarket numbers cross to the same clamp. Any of them can be ordered as OTX-4CT450S.
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.25450 | Aftermarket |
| Automann | 56125450 | Aftermarket |
| Breeze | CT 450 L SS | Aftermarket |
| Breeze | CT450LSS | Aftermarket |
| Donaldson | P532928 | Aftermarket |
| Excoh | 4CT450S | Aftermarket |
| Gates | 32645 | Aftermarket |
| Norma | 0156 0005 107 | Aftermarket |
| Norma | 1560005107 | Aftermarket |
| Norma | 01560005107 | Aftermarket |
| Tectran | HK450 | Aftermarket |
| Velvac | 022445 | Aftermarket |
Ordering OTX-4CT450S
Quote requests for OTX-4CT450S are answered within 24 hours. Tell us the quantity, and mention Norma 1560005107 if you are replacing that number.
Questions about this number
Is OTX-4CT450S the same as Norma 1560005107?
Yes. OTX-4CT450S matches Norma 1560005107: clamping range 3-3/4 in to 4-5/8 in (95–117 mm), band width 5/8 in. If the hose has been changed since the old clamp was fitted, measure the hose outside diameter before ordering.
What size is the Norma 1560005107 clamp?
Norma 1560005107 fits 3-3/4 in to 4-5/8 in (95–117 mm). The band is 301 Stainless Steel.
