Norma 3600102016 Cross Reference

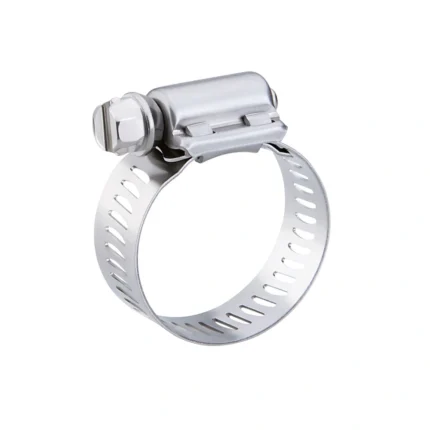

OneTouch OTX-4SC006M is a direct interchange for Norma 3600102016. Both are a mini worm gear hose clamp with a clamping range of 7/16 in to 25/32 in (11–20 mm), so the clamp drops into the same position on the vehicle without changes to the hose or fitting.

OTX-4SC006M specifications (replaces Norma 3600102016)

Clamp Type	Mini Worm Gear Hose Clamp
Application	Small Fuel, Vacuum & Air Lines
Clamping Range	7/16 in to 25/32 in (11–20 mm)
Hex Size	1/4 in
Torque Rating	45 in-lbs
SAE	6
Band Width	5/16 in
Band Material	301 Stainless Steel
Screw	Zinc Plated Carbon Steel | 1/4 in hex
Sold As	Each

Where the Norma 3600102016 clamp is used

Worm gear hose clamps are the everyday fix for coolant, fuel, air and vacuum hoses. They tighten with a screwdriver or nut driver and can be reused. OTX-4SC006M is used on small fuel, vacuum & air lines.

Other part numbers that match OTX-4SC006M

4 more OEM and aftermarket numbers cross to the same clamp. Any of them can be ordered as OTX-4SC006M.

Ordering OTX-4SC006M

Send us the Norma 3600102016 number with the quantity you need and your delivery country. We reply within 24 hours with price and lead time for OTX-4SC006M.

Questions about this number

Is OTX-4SC006M the same as Norma 3600102016?

Yes. OTX-4SC006M matches Norma 3600102016: clamping range 7/16 in to 25/32 in (11–20 mm), band width 5/16 in. If the hose has been changed since the old clamp was fitted, measure the hose outside diameter before ordering.

What size is the Norma 3600102016 clamp?

Norma 3600102016 fits 7/16 in to 25/32 in (11–20 mm). The band is 301 Stainless Steel.
