Tramec Sloan 491740 Cross Reference
Tramec Sloan 491740 is a Tramec Sloan aftermarket part number. The OneTouch Exim replacement is OTX-4SS0040, a worm gear hose clamp with a clamping range of 2-1/16 in to 3 in (52–76 mm). It fits the same hose or pipe and installs the same way, so OTX-4SS0040 can be ordered wherever Tramec Sloan 491740 is called for.
OneTouch replacement

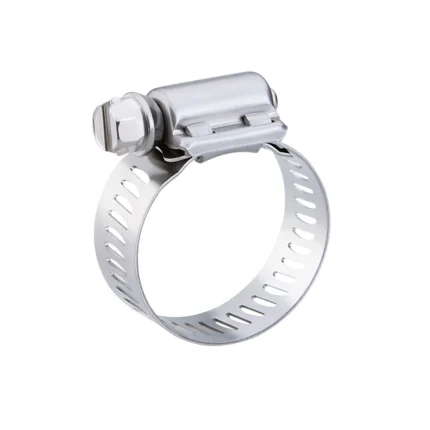

Hose Clamp Stainless Steel All 2.06 in to 3 in
Part No. OTX-4SS0040
- Clamping Range 2-1/16 in to 3 in (52–76 mm)
- Band Width 1/2 in
- Band Material 301 Stainless Steel
OTX-4SS0040 specifications (replaces Tramec Sloan 491740)
| Clamp Type | Worm Gear Hose Clamp |
| Application | Coolant, Fuel & Air Hoses |
| Clamping Range | 2-1/16 in to 3 in (52–76 mm) |
| Hex Size | 5/16 in |
| Torque Rating | 45 in-lbs |
| SAE | 40 |
| Band Width | 1/2 in |
| Band Material | 301 Stainless Steel |
| Screw | 410 Stainless Steel | 5/16 in hex |
| Sold As | Each |
Where the Tramec Sloan 491740 clamp is used
Worm gear hose clamps are the everyday fix for coolant, fuel, air and vacuum hoses. They tighten with a screwdriver or nut driver and can be reused. OTX-4SS0040 is used on coolant, fuel & air hoses.
Other part numbers that match OTX-4SS0040
6 more OEM and aftermarket numbers cross to the same clamp. Any of them can be ordered as OTX-4SS0040.
| Name | Part Number | Type |
|---|---|---|
| Breeze | 64040H | Aftermarket |
| Excoh | 4SS0040 | Aftermarket |
| Murray | H44SS00C | Aftermarket |
| Norma | 0361 0116 053 | Aftermarket |
| Norma | 03610116053 | Aftermarket |
| Norma | 3610116053 | Aftermarket |
| Tramec Sloan | 491740 | Aftermarket |
Ordering OTX-4SS0040
Send us the Tramec Sloan 491740 number with the quantity you need and your delivery country. We reply within 24 hours with price and lead time for OTX-4SS0040.
Questions about this number
Is OTX-4SS0040 the same as Tramec Sloan 491740?
Yes. OTX-4SS0040 matches Tramec Sloan 491740: clamping range 2-1/16 in to 3 in (52–76 mm), band width 1/2 in. If the hose has been changed since the old clamp was fitted, measure the hose outside diameter before ordering.
What size is the Tramec Sloan 491740 clamp?
Tramec Sloan 491740 fits 2-1/16 in to 3 in (52–76 mm). The band is 301 Stainless Steel.
