SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | ZINC PLATED CARBON STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 1/2" |
| Torque Range (in-lbs) | 45 |
| SAE | 80 |
| Min. Dia. (in) | 2-1/2 |
| Max. Dia. (in) | 5-1/2 |
| Min. Dia. (mm) | 64 |
| Max. Dia. (mm) | 140 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Breeze | 62080 | Aftermarket |
| Breeze | 62080H | Aftermarket |
| Dynacraft | D2006-2344 | Aftermarket |
| Dynacraft | D2006-3934 | Aftermarket |
| Dynacraft | D20062344 | Aftermarket |
| Dynacraft | D20063934 | Aftermarket |
| Excoh | 4SC0080 | Aftermarket |
| Fairview | HC6-80 | Aftermarket |
| Fairview | HC680 | Aftermarket |
| Imperial | 72318 | Aftermarket |
| Murray | H8000C | Aftermarket |
| PDC | 62080 | Aftermarket |
| Spares | H-80 | Aftermarket |
| Spares | H80 | Aftermarket |
| Tectran | HC80 | Aftermarket |
| Tramec Sloan | 491080 | Aftermarket |
| Velvac | 022380 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant, Fuel & Air Hoses |
| Clamp Type | Worm Gear Hose Clamp |
| Clamping Range | 2-1/2 in to 5-1/2 in (64–140 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

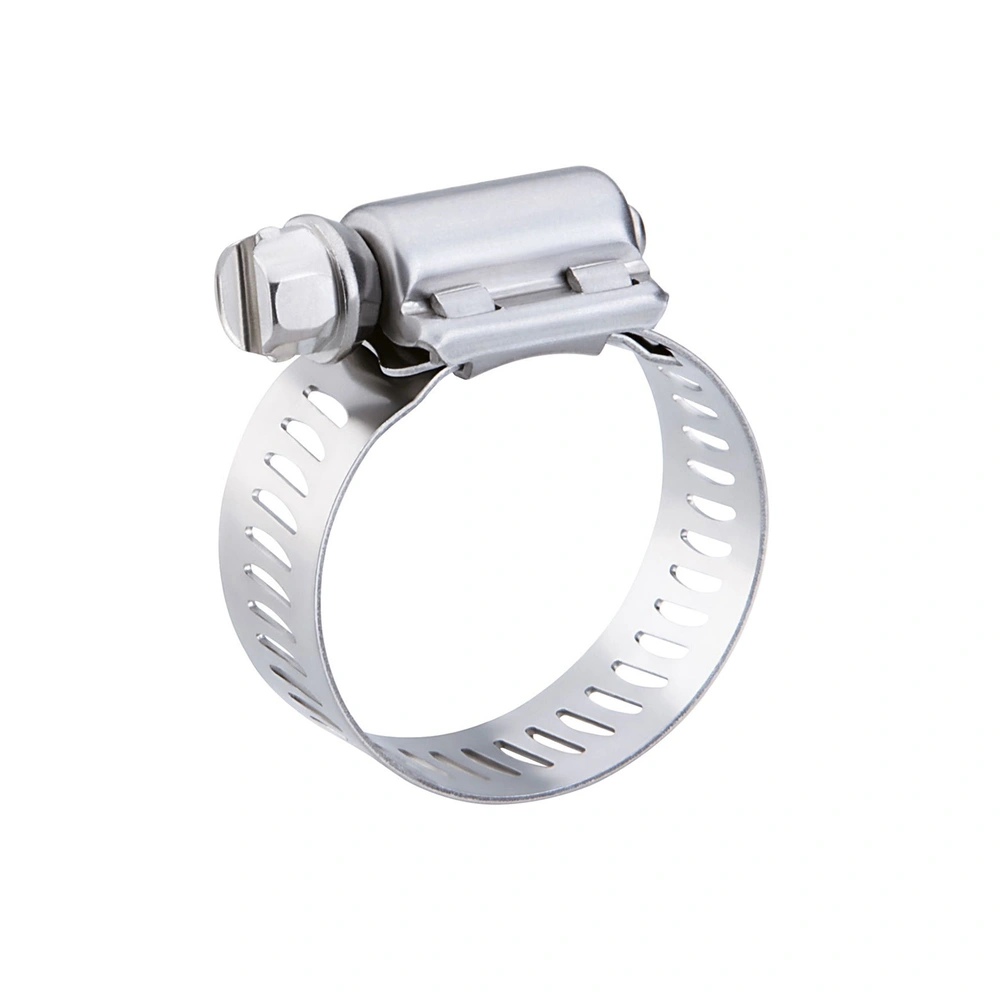

Product Overview – Hose Clamp 4.56 in to 5.50 in
The Hose Clamp 4.56 in to 5.50 in (Part No. OTX-4SC0080) is a worm gear hose clamp with a clamping range of 2-1/2 in to 5-1/2 in (64–140 mm), made for coolant, fuel and air hoses on trucks, buses and off-highway equipment.
The perforated band and worm screw give quick, adjustable clamping across the full range, making this the everyday clamp for coolant, fuel and air hoses.
Construction: a 301 stainless steel band 1/2 in wide, a zinc plated carbon steel screw with a 5/16 in hex, with a torque rating of 45 in-lbs.
It interchanges with 13 aftermarket part numbers from brands such as Breeze, Dynacraft, Excoh, Fairview, including Dynacraft D2006-2344, Dynacraft D2006-3934, Excoh 4SC0080.
Tip: replace clamps whenever a joint is opened for service; a used clamp may not seal to the same load.
Order the OTX-4SC0080 from OneTouch Exim in single units or bulk cartons; share your quantity and destination for a quick quote.
Frequently Asked Questions
Which part numbers does OTX-4SC0080 replace?
OTX-4SC0080 interchanges with Breeze 62080H, Breeze 62080, Dynacraft D2006-2344, Dynacraft D2006-3934, Excoh 4SC0080, Fairview HC6-80 and more. The cross reference table lists all 17 matching numbers.
What hose size does OTX-4SC0080 fit?
It fits hoses with an outside diameter from 2-1/2 in to 5-1/2 in (64–140 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
