SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Nominal Diameter (Ø) (in) | 13.38 |
| Insert Thickness (A) (in) | 0.077 |
| Insert Apex Width (B) (in) | 0.104 |
| Insert Depth (C) (in) | 0.281 |
| Band Thickness (D) (in) | 0.062 |
| Band Width (E) (in) | 0.875 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.291338 | Aftermarket |
| Automann | 561.291338-B | Aftermarket |
| Automann | 561291338 | Aftermarket |
| Automann | 561291338B | Aftermarket |
| Breeze | 0373 0104 340 | Aftermarket |
| Breeze | 03730104340 | Aftermarket |
| Cummins | 2871863 | OEM |
| Cummins | Q187682 | OEM |
| Donaldson | P238310 | Aftermarket |
| Excoh | 4VC1338 | Aftermarket |
| International | 259663C1 | OEM |
| International | 2596663C1 | OEM |
| International | 2607045C1 | OEM |
| Mack | 4965098 | OEM |
| New Star | S-23250 | Aftermarket |
| New Star | S23250 | Aftermarket |
| Norma | 3730104340 | Aftermarket |
| R.G. Ray | 100279-006 | Aftermarket |
| R.G. Ray | 100279006 | Aftermarket |
| Volvo | 21445455 | OEM |
Application
| Type | Details |
|---|---|
| Application | DPF / Aftertreatment |
| Clamp Type | V-Band Clamp |
| Compatible With | Cummins Cummins ISM, ISX 12, ISX 15 |
| OEM Makes | Cummins, International, Mack, Volvo |

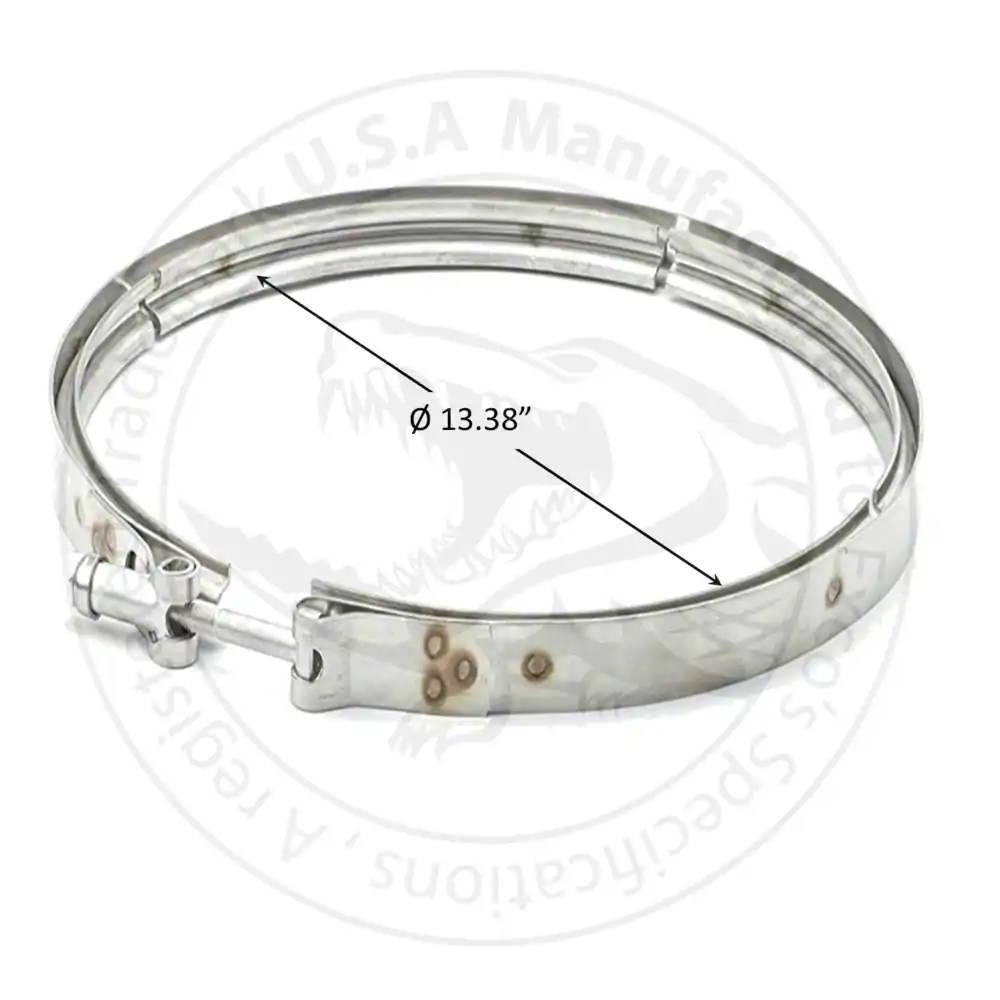

| Nominal Diameter | 13.38 in (339.9 mm) |

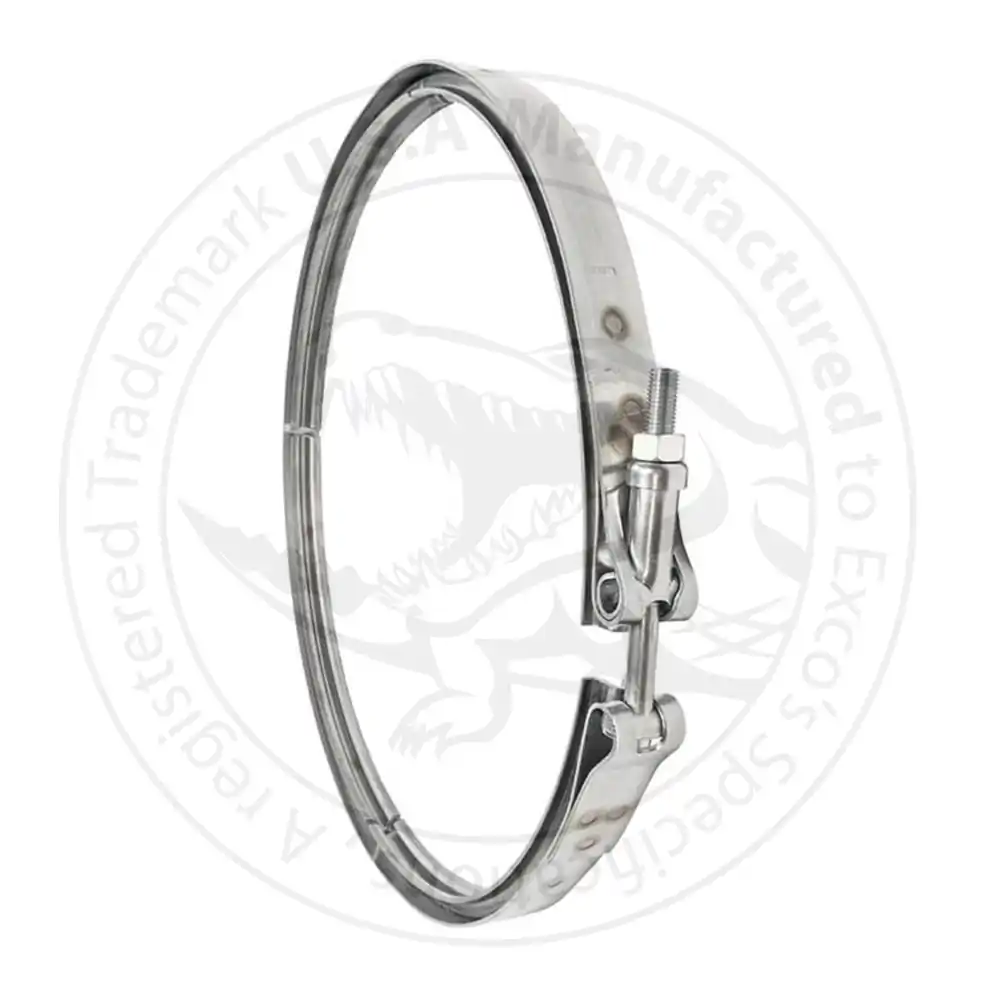

Product Overview – DPF V-Band Clamp 13.38 in
Replace a worn or stretched DPF and aftertreatment clamp with the OTX-4VC1338, a V-band clamp with a 13.38 in nominal diameter, and it is compatible with Cummins Cummins ISM, ISX 12, ISX 15.
In the aftertreatment system it holds the diesel particulate filter (DPF) sections together and allows fast removal when the filter needs cleaning or replacement.
Measured dimensions: a 0.875 in band width, a 0.077 in insert thickness, an insert depth of 0.281 in; compare these with your original clamp before ordering.
Buyers searching for Cummins Q187682, Cummins 2871863 can use OTX-4VC1338 as a direct interchange; the full list of 15 matching numbers is shown below.
Tip: keep a few common sizes in stock to cut vehicle downtime during routine maintenance.
Order the OTX-4VC1338 from OneTouch Exim in single units or bulk cartons; share your quantity and destination for a quick quote.
Frequently Asked Questions
Which part numbers does OTX-4VC1338 replace?
OTX-4VC1338 interchanges with Cummins Q187682, Cummins 2871863, International 259663C1, International 2596663C1, International 2607045C1, Mack 4965098 and more. The cross reference table lists all 20 matching numbers.
What size is the OTX-4VC1338 V-band clamp?
It has a nominal diameter of 13.38 in (339.9 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
