SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Nominal Diameter (Ø) (in) | 6.49 |
| Insert Thickness (A) (in) | 0.06 |
| Insert Apex Width (B) (in) | 0.44 |
| Insert Depth (C) (in) | 0.44 |
| Band Thickness (D) (in) | .04 |
| Band Width (E) (in) | 0.875 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.29649 | Aftermarket |
| Automann | 56129649 | Aftermarket |
| Cummins | 2880213 | OEM |
| Excoh | 4VC0649 | Aftermarket |
| Navistar | 2511519C1 | OEM |
| Paccar | 1827321PE | OEM |
| PAI | 042048 | Aftermarket |
| R.G. Ray | 03730008162 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Exhaust & Turbo (General Purpose) |
| Clamp Type | V-Band Clamp |
| Compatible With | Docspherical-MARMON5.00 Body Sizecummins ISL, ISM, ISX15, X15IHC Maxxforce 13, A26PACCAR MX13 |
| OEM Makes | Cummins, Navistar, Paccar |
| Nominal Diameter | 6.49 in (164.8 mm) |

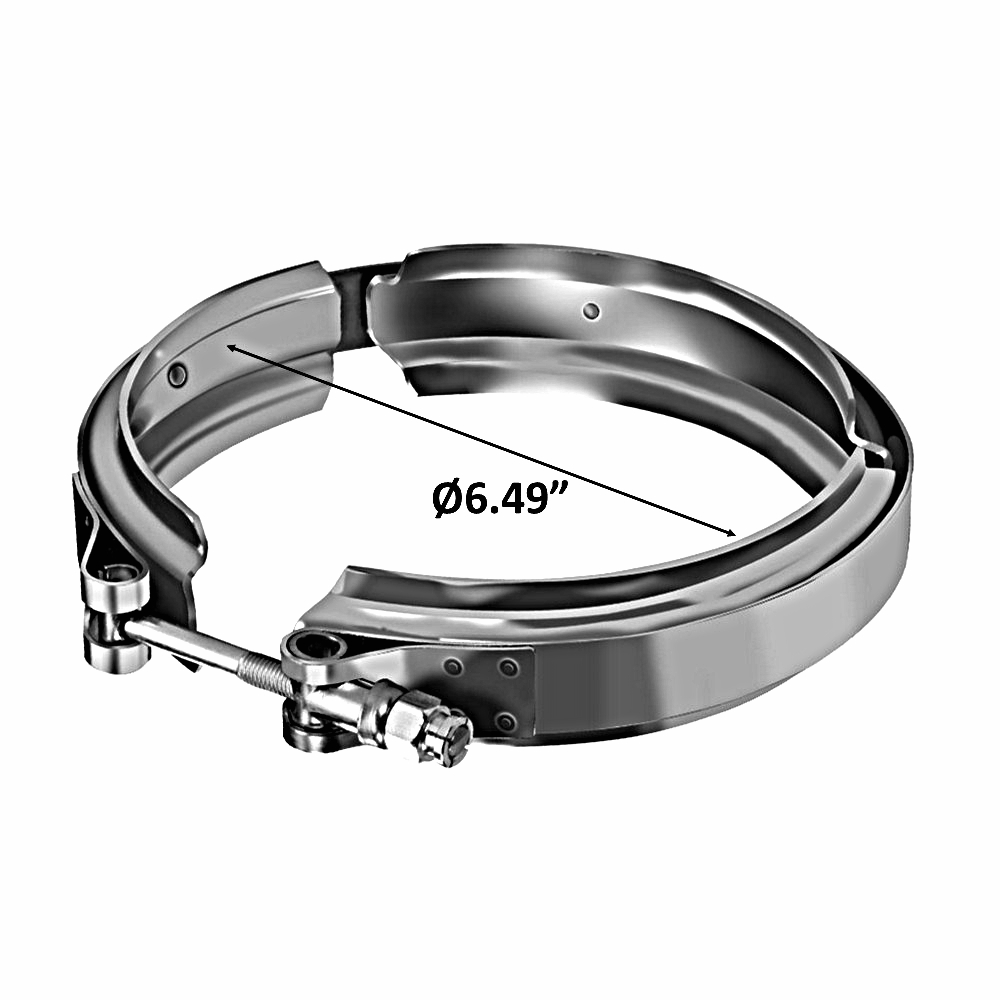

Product Overview – V-Band Clamp 6.49 in
The V-Band Clamp 6.49 in (Part No. OTX-4VC0649) is a V-band clamp for exhaust and turbo connections on heavy-duty trucks and diesel engines, with a 6.49 in nominal diameter, and it is compatible with Docspherical-MARMON5.00 Body Sizecummins ISL, ISM, ISX15, X15IHC Maxxforce 13, A26PACCAR MX13.
V-band clamps replace bolted flanges with a single-fastener joint that is faster to install and easier to service while keeping an even seal all the way around.
Measured dimensions: a 0.875 in band width, a 0.06 in insert thickness, an insert depth of 0.44 in; compare these with your original clamp before ordering.
Buyers searching for Cummins 2880213, Navistar 2511519C1 can use OTX-4VC0649 as a direct interchange; the full list of 7 matching numbers is shown below.
Tip: replace clamps whenever a joint is opened for service; a used clamp may not seal to the same load.
Distributors and fleet buyers can request volume pricing on OTX-4VC0649 from OneTouch Exim by email or WhatsApp.
Frequently Asked Questions
Which part numbers does OTX-4VC0649 replace?
OTX-4VC0649 interchanges with Cummins 2880213, Navistar 2511519C1, Paccar 1827321PE, Automann 561.29649, Excoh 4VC0649, PAI 042048 and more. The cross reference table lists all 8 matching numbers.
What size is the OTX-4VC0649 V-band clamp?
It has a nominal diameter of 6.49 in (164.8 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
