Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | 410 STAINLESS STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 9/16" |
| Torque Range (in-lbs) | 70 |
| SAE | 24 |
| Min. Dia. (in) | 1-1/16 |
| Max. Dia. (in) | 2 |
| Min. Dia. (mm) | 27 |
| Max. Dia. (mm) | 51 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.2424 | Aftermarket |
| Automann | 5612424 | Aftermarket |
| Breeze | CT 9424 | Aftermarket |
| Breeze | CT9424 | Aftermarket |
| Excoh | 4CT0024 | Aftermarket |
| Norma | 0362 0302 039 | Aftermarket |
| Norma | 3620302039 | Aftermarket |
| Norma | 03620302039 | Aftermarket |
| Tectran | HK24 | Aftermarket |
| Velvac | 022424 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant & Heater Hoses |
| Clamp Type | Constant Torque Clamp |
| Clamping Range | 1-1/16 in to 2 in (27–51 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

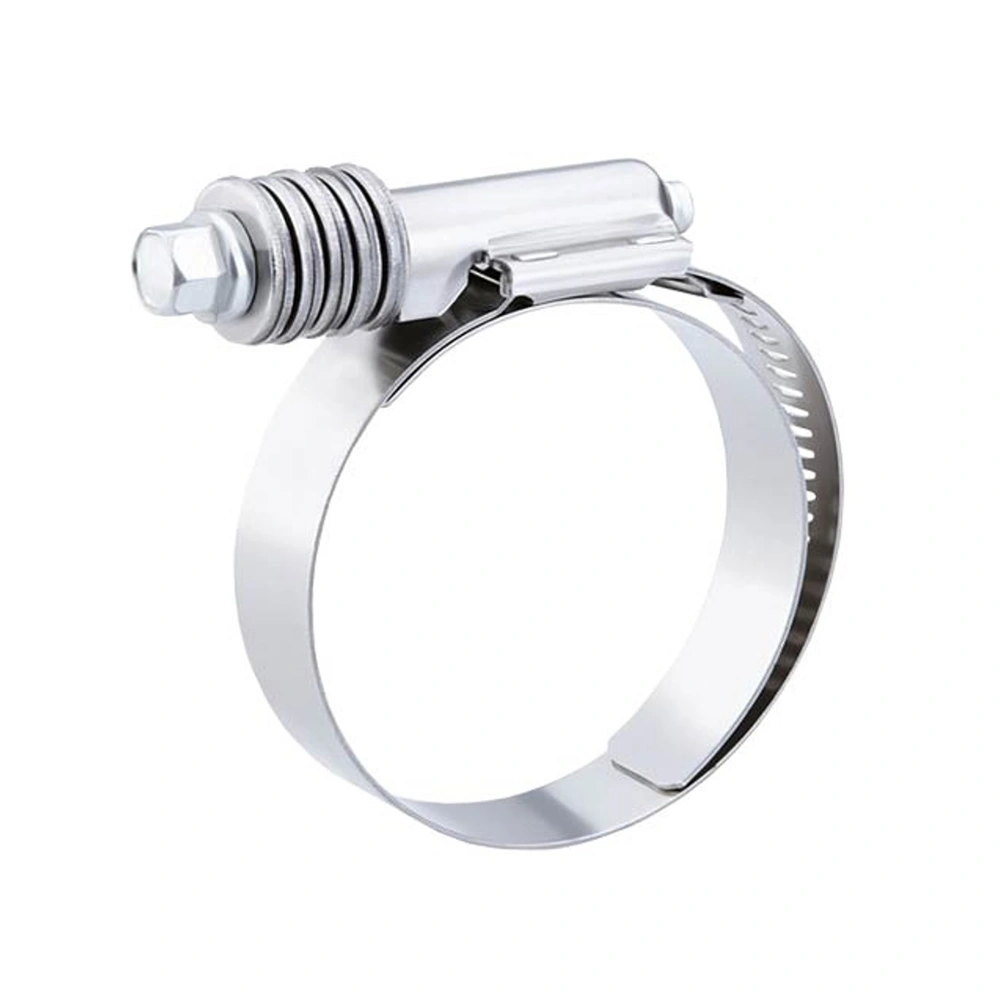

Product Overview – Constant Torque Clamp 1.06 in to 2 in
Secure coolant and heater hoses with the OTX-4CT0024 constant torque clamp, covering 1-1/16 in to 2 in (27–51 mm) in a single size.
A stack of spring washers in the screw housing lets the clamp follow hose expansion and contraction as temperatures change, keeping sealing pressure steady and reducing cold-start coolant leaks.
Construction: a 301 stainless steel band 9/16 in wide, a 410 stainless steel screw with a 5/16 in hex, with a torque rating of 70 in-lbs.
Looking for Automann 561.2424, Excoh 4CT0024? OTX-4CT0024 is the matching interchange; see the cross-reference table below for every equivalent number.
Tip: tighten evenly to the recommended torque and re-check after the first heat cycle.
Need bulk quantities? OneTouch Exim exports heavy-duty clamps to distributors and fleets. Request a quote for OTX-4CT0024 today.
Frequently Asked Questions
Which part numbers does OTX-4CT0024 replace?
OTX-4CT0024 interchanges with Automann 561.2424, Breeze CT9424, Excoh 4CT0024, Norma 3620302039, Norma 0362 0302 039, Tectran HK24 and more. The cross reference table lists all 10 matching numbers.
What hose size does OTX-4CT0024 fit?
It fits hoses with an outside diameter from 1-1/16 in to 2 in (27–51 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
