Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | 410 STAINLESS STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 9/16" |
| Torque Range (in-lbs) | 70 |
| SAE | 20 |
| Min. Dia. (in) | 13/16 |
| Max. Dia. (in) | 1-3/4 |
| Min. Dia. (mm) | 21 |
| Max. Dia. (mm) | 44 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.2420 | Aftermarket |
| Automann | 5612420 | Aftermarket |
| Breeze | CT 9420 | Aftermarket |
| Breeze | CT9420 | Aftermarket |
| Excoh | 4CT0020 | Aftermarket |
| Norma | 0362 0302 033 | Aftermarket |
| Norma | 3620302033 | Aftermarket |
| Norma | 03620302033 | Aftermarket |
| Tectran | HK20 | Aftermarket |
| Velvac | 022420 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant & Heater Hoses |
| Clamp Type | Constant Torque Clamp |
| Clamping Range | 13/16 in to 1-3/4 in (21–44 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

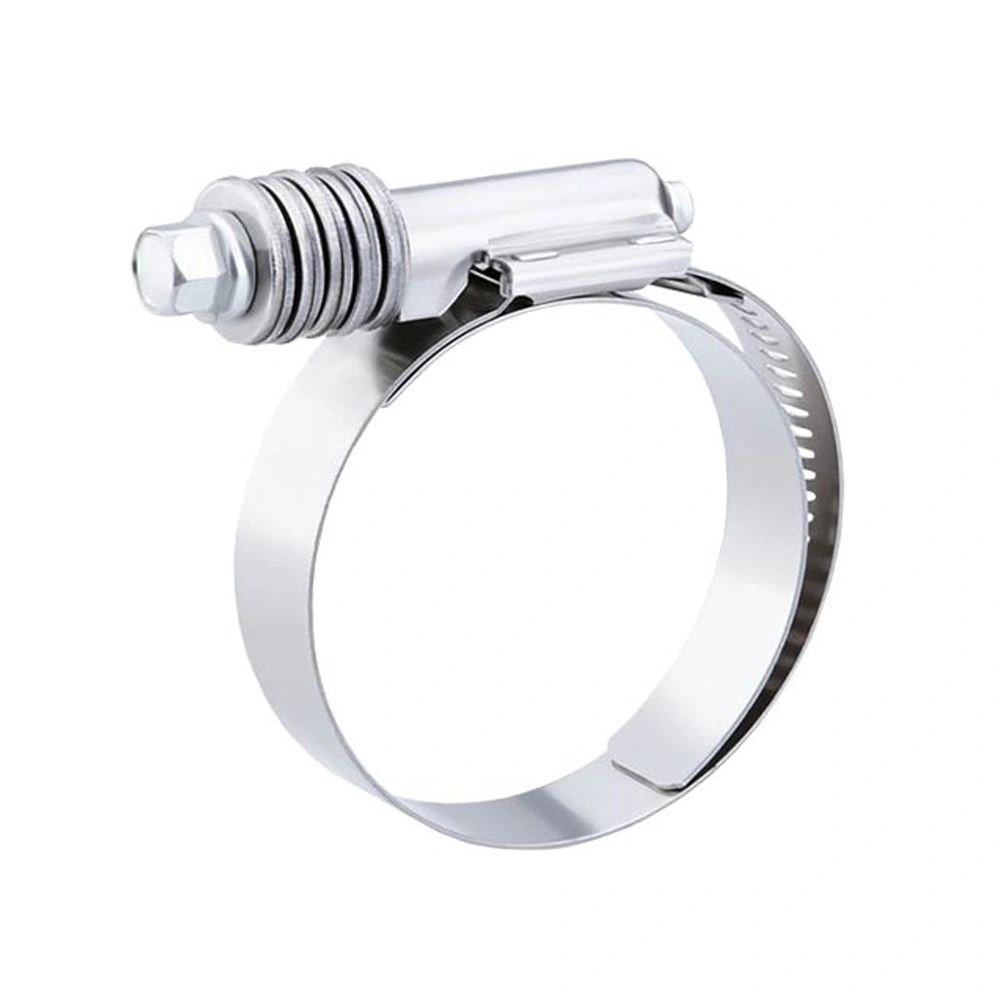

Product Overview – Constant Torque Clamp 0.81 in to 1.75 in
When a standard clamp is not enough, the OTX-4CT0020 constant torque clamp (13/16 in to 1-3/4 in (21–44 mm)) gives a dependable seal on coolant and heater hoses.
Unlike a standard worm clamp, a constant torque clamp compensates for hose shrinkage over hot and cold cycles, so it does not need constant re-tightening.
Construction: a 301 stainless steel band 9/16 in wide, a 410 stainless steel screw with a 5/16 in hex, with a torque rating of 70 in-lbs.
It interchanges with 7 aftermarket part numbers from brands such as Automann, Breeze, Excoh, Norma, including Automann 561.2420, Excoh 4CT0020, Norma 3620302033.
Tip: replace clamps whenever a joint is opened for service; a used clamp may not seal to the same load.
Need bulk quantities? OneTouch Exim exports heavy-duty clamps to distributors and fleets. Request a quote for OTX-4CT0020 today.
Frequently Asked Questions
Which part numbers does OTX-4CT0020 replace?
OTX-4CT0020 interchanges with Automann 561.2420, Breeze CT9420, Excoh 4CT0020, Norma 3620302033, Norma 0362 0302 033, Tectran HK20 and more. The cross reference table lists all 10 matching numbers.
What hose size does OTX-4CT0020 fit?
It fits hoses with an outside diameter from 13/16 in to 1-3/4 in (21–44 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
