SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | 410 STAINLESS STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 9/16" |
| Torque Range (in-lbs) | 70 |
| SAE | 16 |
| Min. Dia. (in) | 13/16 |
| Max. Dia. (in) | 1-1/2 |
| Min. Dia. (mm) | 21 |
| Max. Dia. (mm) | 38 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.2416 | Aftermarket |
| Automann | 5612416 | Aftermarket |
| Breeze | CT 9416 | Aftermarket |
| Breeze | CT9416 | Aftermarket |
| Excoh | 4CT0016 | Aftermarket |
| Norma | 0362 0302 029 | Aftermarket |
| Norma | 3620302029 | Aftermarket |
| Norma | 03620302029 | Aftermarket |
| Tectran | HK16 | Aftermarket |
| Velvac | 022416 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant & Heater Hoses |
| Clamp Type | Constant Torque Clamp |
| Clamping Range | 13/16 in to 1-1/2 in (21–38 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

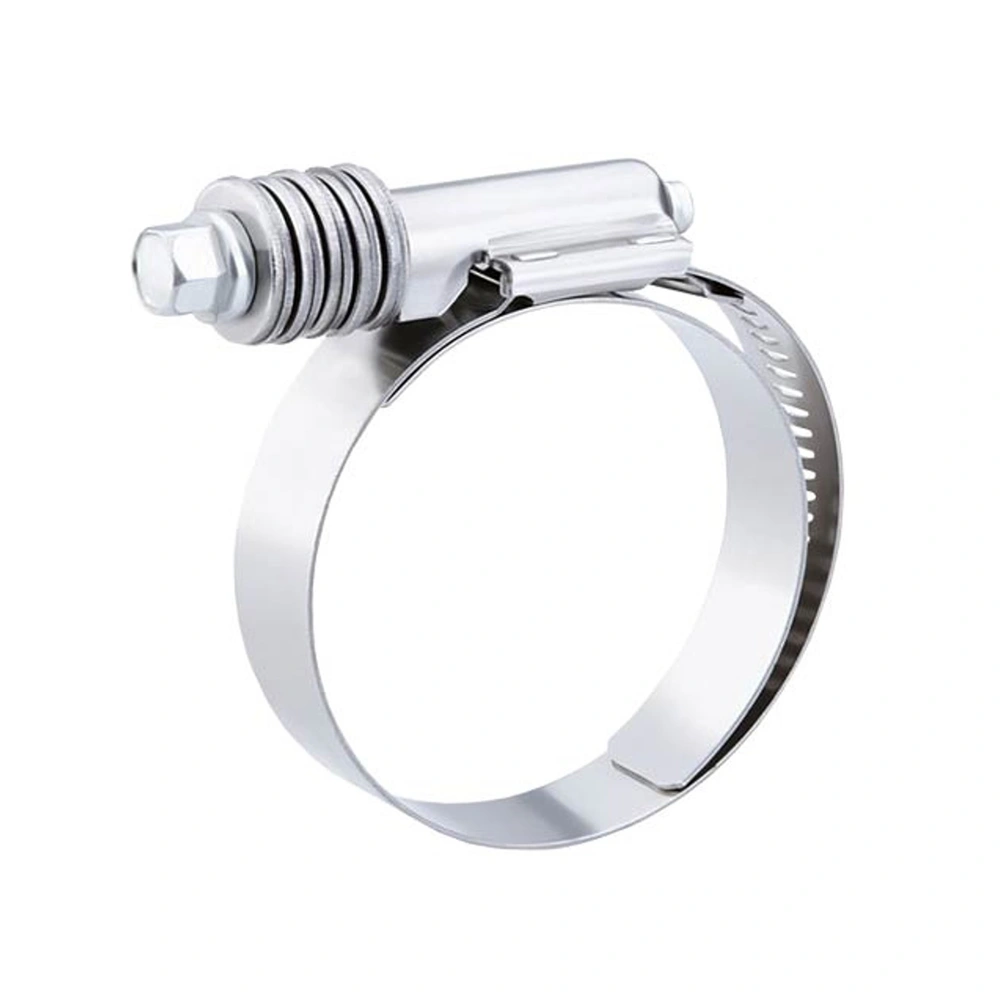

Product Overview – Constant Torque Clamp 0.81 in to 1.50 in
The Constant Torque Clamp 0.81 in to 1.50 in (Part No. OTX-4CT0016) is a constant torque clamp with a clamping range of 13/16 in to 1-1/2 in (21–38 mm), made for coolant and heater hoses on trucks, buses and off-highway equipment.
Unlike a standard worm clamp, a constant torque clamp compensates for hose shrinkage over hot and cold cycles, so it does not need constant re-tightening.
Construction: a 301 stainless steel band 9/16 in wide, a 410 stainless steel screw with a 5/16 in hex, with a torque rating of 70 in-lbs.
It interchanges with 7 aftermarket part numbers from brands such as Automann, Breeze, Excoh, Norma, including Automann 561.2416, Excoh 4CT0016, Norma 3620302029.
Tip: always match the clamp size to the outside diameter of the joint, not the pipe or hose inside diameter.
OneTouch Exim supplies the OTX-4CT0016 for fleet, workshop and distributor orders worldwide. Send us your part number for pricing and availability.
Frequently Asked Questions
Which part numbers does OTX-4CT0016 replace?
OTX-4CT0016 interchanges with Automann 561.2416, Breeze CT9416, Excoh 4CT0016, Norma 3620302029, Norma 0362 0302 029, Tectran HK16 and more. The cross reference table lists all 10 matching numbers.
What hose size does OTX-4CT0016 fit?
It fits hoses with an outside diameter from 13/16 in to 1-1/2 in (21–38 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
