Automann 561.291040-B Cross Reference

OneTouch OTX-4VC1038 is a direct interchange for Automann 561.291040-B. Both are a v-band clamp, so the clamp drops into the same position on the vehicle without changes to the hose or fitting.

OTX-4VC1038 specifications (replaces Automann 561.291040-B)

Clamp Type	V-Band Clamp
Application	DPF / Aftertreatment

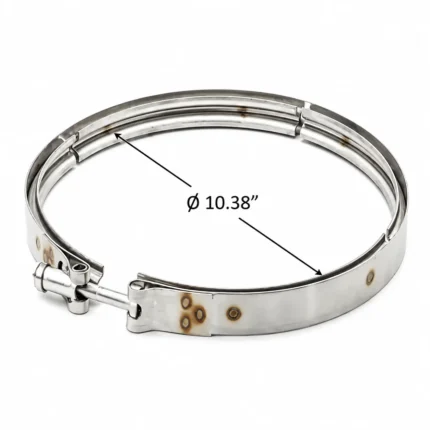

Nominal Diameter	10.38 in (263.7 mm)
Insert Thickness (A)	0.077 in
Insert Apex Width (B)	0.104 in
Insert Depth (C)	0.281 in
Band Thickness (D)	0.062 in
Band Width	0.875 in
Compatible With	Cummins ISB | ISB 6.7 | Paccar PX6 | Cummins Paccar
OEM Manufacturer	Cummins, Freightliner
Sold As	Each

Where the Automann 561.291040-B clamp is used

V-band clamps join flanged exhaust, turbocharger, EGR and DPF connections. The tapered band pulls the two flanges together evenly, giving a tight seal that holds under heat and vibration. OTX-4VC1038 is used on dpf / aftertreatment.

Other part numbers that match OTX-4VC1038

19 more OEM and aftermarket numbers cross to the same clamp. Any of them can be ordered as OTX-4VC1038.

Ordering OTX-4VC1038

Send us the Automann 561.291040-B number with the quantity you need and your delivery country. We reply within 24 hours with price and lead time for OTX-4VC1038.

Questions about this number

Is OTX-4VC1038 the same as Automann 561.291040-B?

Yes. OTX-4VC1038 matches Automann 561.291040-B: band width 0.875 in. If the hose has been changed since the old clamp was fitted, measure the hose outside diameter before ordering.
