Murray H52SS00C Cross Reference
Murray H52SS00C is a Murray aftermarket part number. The OneTouch Exim replacement is OTX-4SS0048, a worm gear hose clamp with a clamping range of 2-9/16 in to 3-1/2 in (65–89 mm). It fits the same hose or pipe and installs the same way, so OTX-4SS0048 can be ordered wherever Murray H52SS00C is called for.
OneTouch replacement

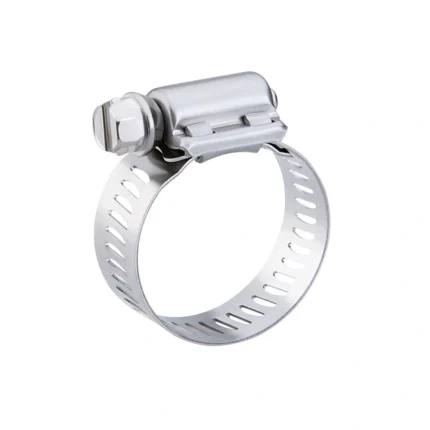

Hose Clamp Stainless Steel All 2.56 in to 3.50 in
Part No. OTX-4SS0048
- Clamping Range 2-9/16 in to 3-1/2 in (65–89 mm)
- Band Width 1/2 in
- Band Material 301 Stainless Steel
OTX-4SS0048 specifications (replaces Murray H52SS00C)
| Clamp Type | Worm Gear Hose Clamp |
| Application | Coolant, Fuel & Air Hoses |
| Clamping Range | 2-9/16 in to 3-1/2 in (65–89 mm) |
| Hex Size | 5/16 in |
| Torque Rating | 45 in-lbs |
| SAE | 48 |
| Band Width | 1/2 in |
| Band Material | 301 Stainless Steel |
| Screw | 410 Stainless Steel | 5/16 in hex |
| Sold As | Each |
Where the Murray H52SS00C clamp is used
Worm gear hose clamps are the everyday fix for coolant, fuel, air and vacuum hoses. They tighten with a screwdriver or nut driver and can be reused. OTX-4SS0048 is used on coolant, fuel & air hoses.
Other part numbers that match OTX-4SS0048
26 more OEM and aftermarket numbers cross to the same clamp. Any of them can be ordered as OTX-4SS0048.
| Name | Part Number | Type |
|---|---|---|
| Acdelco | 32248C | Aftermarket |
| Automann | 561.22048 | Aftermarket |
| Automann | 56122048 | Aftermarket |
| Breeze | 64048 | Aftermarket |
| Breeze | 64048H | Aftermarket |
| Dayco | 92048 | Aftermarket |
| Dayco | K48S | Aftermarket |
| Excoh | 4SS0048 | Aftermarket |
| Gates | 32248 | Aftermarket |
| Goodyear | 51348 | Aftermarket |
| Ideal | 6848 | Aftermarket |
| Ideal | 6848590 | Aftermarket |
| Ideal | 630040048 | Aftermarket |
| Ideal | 630040048051 | Aftermarket |
| Murray | H52SS00C | Aftermarket |
| NAPA | 705-1112 | Aftermarket |
| NAPA | 7051112 | Aftermarket |
| Norma | 0361 0116 065 | Aftermarket |
| Norma | 03610116065 | Aftermarket |
| Norma | 3610116065 | Aftermarket |
| Norton | 033-48 | Aftermarket |
| Norton | 03348 | Aftermarket |
| Sure-Tite | 48HS | Aftermarket |
| Sure-Tite | 48KS3 | Aftermarket |
| Sure-Tite | C48PS | Aftermarket |
| Tramec Sloan | 491748 | Aftermarket |
| Velvac | 022548 | Aftermarket |
Ordering OTX-4SS0048
Send us the Murray H52SS00C number with the quantity you need and your delivery country. We reply within 24 hours with price and lead time for OTX-4SS0048.
Questions about this number
Is OTX-4SS0048 the same as Murray H52SS00C?
Yes. OTX-4SS0048 matches Murray H52SS00C: clamping range 2-9/16 in to 3-1/2 in (65–89 mm), band width 1/2 in. If the hose has been changed since the old clamp was fitted, measure the hose outside diameter before ordering.
What size is the Murray H52SS00C clamp?
Murray H52SS00C fits 2-9/16 in to 3-1/2 in (65–89 mm). The band is 301 Stainless Steel.
