Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | 410 STAINLESS STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 1/2" |
| Torque Range (in-lbs) | 45 |
| SAE | 48 |
| Min. Dia. (in) | 2-9/16 |
| Max. Dia. (in) | 3-1/2 |
| Min. Dia. (mm) | 65 |
| Max. Dia. (mm) | 89 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Acdelco | 32248C | Aftermarket |
| Automann | 561.22048 | Aftermarket |
| Automann | 56122048 | Aftermarket |
| Breeze | 64048 | Aftermarket |
| Breeze | 64048H | Aftermarket |
| Dayco | 92048 | Aftermarket |
| Dayco | K48S | Aftermarket |
| Excoh | 4SS0048 | Aftermarket |
| Gates | 32248 | Aftermarket |
| Goodyear | 51348 | Aftermarket |
| Ideal | 6848 | Aftermarket |
| Ideal | 6848590 | Aftermarket |
| Ideal | 630040048 | Aftermarket |
| Ideal | 630040048051 | Aftermarket |
| Murray | H52SS00C | Aftermarket |
| NAPA | 705-1112 | Aftermarket |
| NAPA | 7051112 | Aftermarket |
| Norma | 0361 0116 065 | Aftermarket |
| Norma | 03610116065 | Aftermarket |
| Norma | 3610116065 | Aftermarket |
| Norton | 033-48 | Aftermarket |
| Norton | 03348 | Aftermarket |
| Sure-Tite | 48HS | Aftermarket |
| Sure-Tite | 48KS3 | Aftermarket |
| Sure-Tite | C48PS | Aftermarket |
| Tramec Sloan | 491748 | Aftermarket |
| Velvac | 022548 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant, Fuel & Air Hoses |
| Clamp Type | Worm Gear Hose Clamp |
| Clamping Range | 2-9/16 in to 3-1/2 in (65–89 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

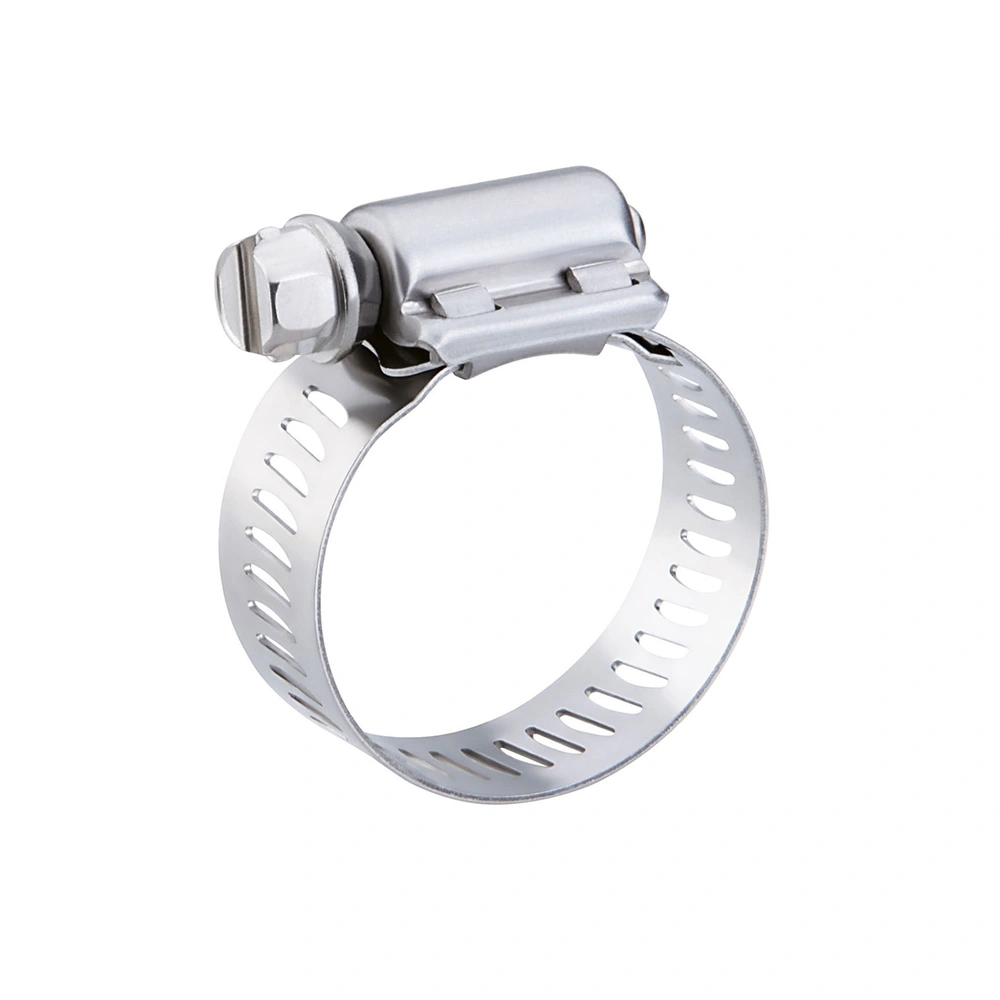

Product Overview – Hose Clamp Stainless Steel All 2.56 in to 3.50 in
Covering 2-9/16 in to 3-1/2 in (65–89 mm), the OTX-4SS0048 worm gear hose clamp keeps coolant, fuel and air hoses sealed on trucks, gensets and industrial machinery.
The perforated band and worm screw give quick, adjustable clamping across the full range, making this the everyday clamp for coolant, fuel and air hoses.
Construction: a 301 stainless steel band 1/2 in wide, a 410 stainless steel screw with a 5/16 in hex, with a torque rating of 45 in-lbs.
Looking for Acdelco 32248C, Automann 561.22048? OTX-4SS0048 is the matching interchange; see the cross-reference table below for every equivalent number.
Tip: replace clamps whenever a joint is opened for service; a used clamp may not seal to the same load.
Distributors and fleet buyers can request volume pricing on OTX-4SS0048 from OneTouch Exim by email or WhatsApp.
Frequently Asked Questions
Which part numbers does OTX-4SS0048 replace?
OTX-4SS0048 interchanges with Acdelco 32248C, Automann 561.22048, Breeze 64048, Breeze 64048H, Dayco 92048, Dayco K48S and more. The cross reference table lists all 27 matching numbers.
What hose size does OTX-4SS0048 fit?
It fits hoses with an outside diameter from 2-9/16 in to 3-1/2 in (65–89 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
