SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | ZINC PLATED CARBON STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 1/2" |
| Torque Range (in-lbs) | 45 |
| SAE | 6 |
| Min. Dia. (in) | 7/16 |
| Max. Dia. (in) | 25/32 |
| Min. Dia. (mm) | 11 |
| Max. Dia. (mm) | 20 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.20006 | Aftermarket |
| Automann | 56120006 | Aftermarket |
| Breeze | 62006H | Aftermarket |
| Excoh | 4SC0006 | Aftermarket |
| Gates | 32006 | Aftermarket |
| Murray | H600C | Aftermarket |
| Norma | 0361 0116 016 | Aftermarket |
| Norma | 3610116016 | Aftermarket |
| Norma | 03610116016 | Aftermarket |
| Tectran | HC6 | Aftermarket |
| Velvac | 022306 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant, Fuel & Air Hoses |
| Clamp Type | Worm Gear Hose Clamp |
| Clamping Range | 7/16 in to 25/32 in (11–20 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

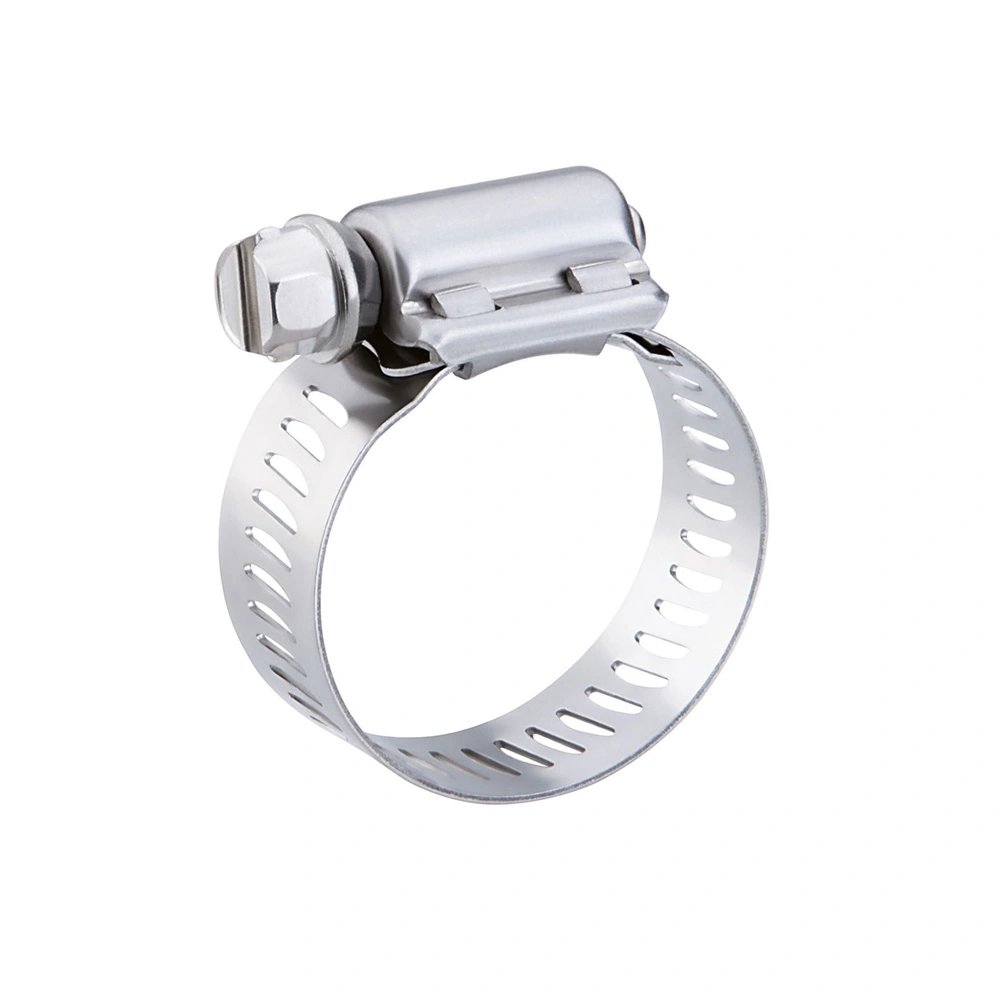

Product Overview – Hose Clamp 0.44 in to 0.78 in
Covering 7/16 in to 25/32 in (11–20 mm), the OTX-4SC0006 worm gear hose clamp keeps coolant, fuel and air hoses sealed on trucks, gensets and industrial machinery.
A worm gear clamp is easy to install and re-use with a nut driver or screwdriver, and holds hose connections tight in workshops, fleets and plant maintenance.
Construction: a 301 stainless steel band 1/2 in wide, a zinc plated carbon steel screw with a 5/16 in hex, with a torque rating of 45 in-lbs.
Looking for Automann 561.20006, Excoh 4SC0006? OTX-4SC0006 is the matching interchange; see the cross-reference table below for every equivalent number.
Tip: replace clamps whenever a joint is opened for service; a used clamp may not seal to the same load.
Contact OneTouch Exim with your OEM or competitor part number and we will confirm fitment and quote the OTX-4SC0006.
Frequently Asked Questions
Which part numbers does OTX-4SC0006 replace?
OTX-4SC0006 interchanges with Automann 561.20006, Breeze 62006H, Excoh 4SC0006, Gates 32006, Murray H600C, Norma 3610116016 and more. The cross reference table lists all 11 matching numbers.
What hose size does OTX-4SC0006 fit?
It fits hoses with an outside diameter from 7/16 in to 25/32 in (11–20 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
