SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | ZINC PLATED CARBON STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 1/2" |
| Torque Range (in-lbs) | 45 |
| SAE | 20 |
| Min. Dia. (in) | 13/16 |
| Max. Dia. (in) | 1-3/4 |
| Min. Dia. (mm) | 21 |
| Max. Dia. (mm) | 44 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.20020 | Aftermarket |
| Automann | 56120020 | Aftermarket |
| Breeze | 62020 | Aftermarket |
| Breeze | 62020H | Aftermarket |
| Breeze | 62020HC | Aftermarket |
| Excoh | 4SC0020 | Aftermarket |
| Gates | 32020 | Aftermarket |
| Tectran | HC20 | Aftermarket |
| Velvac | 022320 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant, Fuel & Air Hoses |
| Clamp Type | Worm Gear Hose Clamp |
| Clamping Range | 13/16 in to 1-3/4 in (21–44 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

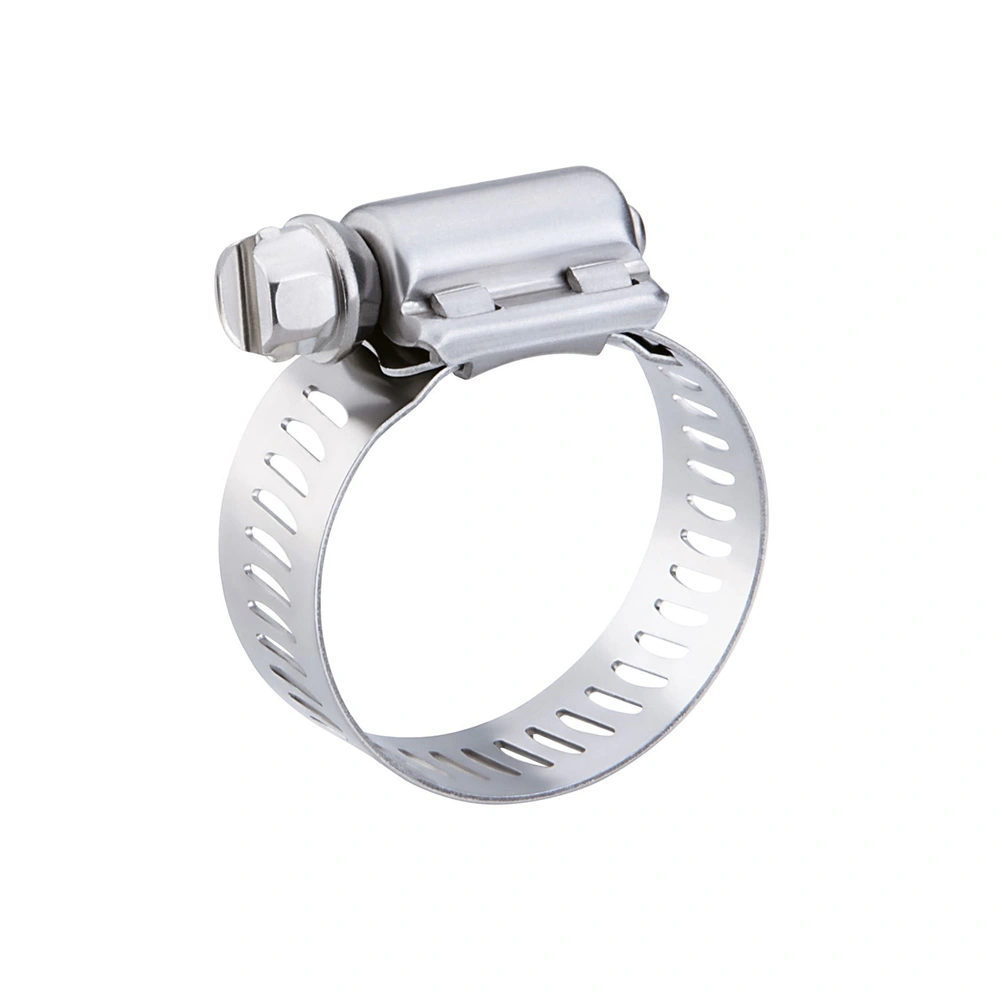

Product Overview – Hose Clamp 0.81 in to 1.75 in
When a standard clamp is not enough, the OTX-4SC0020 worm gear hose clamp (13/16 in to 1-3/4 in (21–44 mm)) gives a dependable seal on coolant, fuel and air hoses.
The perforated band and worm screw give quick, adjustable clamping across the full range, making this the everyday clamp for coolant, fuel and air hoses.
Construction: a 301 stainless steel band 1/2 in wide, a zinc plated carbon steel screw with a 5/16 in hex, with a torque rating of 45 in-lbs.
Looking for Automann 561.20020, Excoh 4SC0020? OTX-4SC0020 is the matching interchange; see the cross-reference table below for every equivalent number.
Tip: replace clamps whenever a joint is opened for service; a used clamp may not seal to the same load.
Need bulk quantities? OneTouch Exim exports heavy-duty clamps to distributors and fleets. Request a quote for OTX-4SC0020 today.
Frequently Asked Questions
Which part numbers does OTX-4SC0020 replace?
OTX-4SC0020 interchanges with Automann 561.20020, Breeze 62020HC, Breeze 62020, Breeze 62020H, Excoh 4SC0020, Gates 32020 and more. The cross reference table lists all 9 matching numbers.
What hose size does OTX-4SC0020 fit?
It fits hoses with an outside diameter from 13/16 in to 1-3/4 in (21–44 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
