SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | ZINC PLATED CARBON STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 1/2" |
| Torque Range (in-lbs) | 45 |
| SAE | 16 |
| Min. Dia. (in) | 13/16 |
| Max. Dia. (in) | 1-1/2 |
| Min. Dia. (mm) | 21 |
| Max. Dia. (mm) | 38 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.20016 | Aftermarket |
| Automann | 56120016 | Aftermarket |
| Breeze | 62016 | Aftermarket |
| Breeze | 62016H | Aftermarket |
| Breeze | 62016HC | Aftermarket |
| Excoh | 4SC0016 | Aftermarket |
| Gates | 32016 | Aftermarket |
| Murray | H1600C | Aftermarket |
| Velvac | 022316 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant, Fuel & Air Hoses |
| Clamp Type | Worm Gear Hose Clamp |
| Clamping Range | 13/16 in to 1-1/2 in (21–38 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

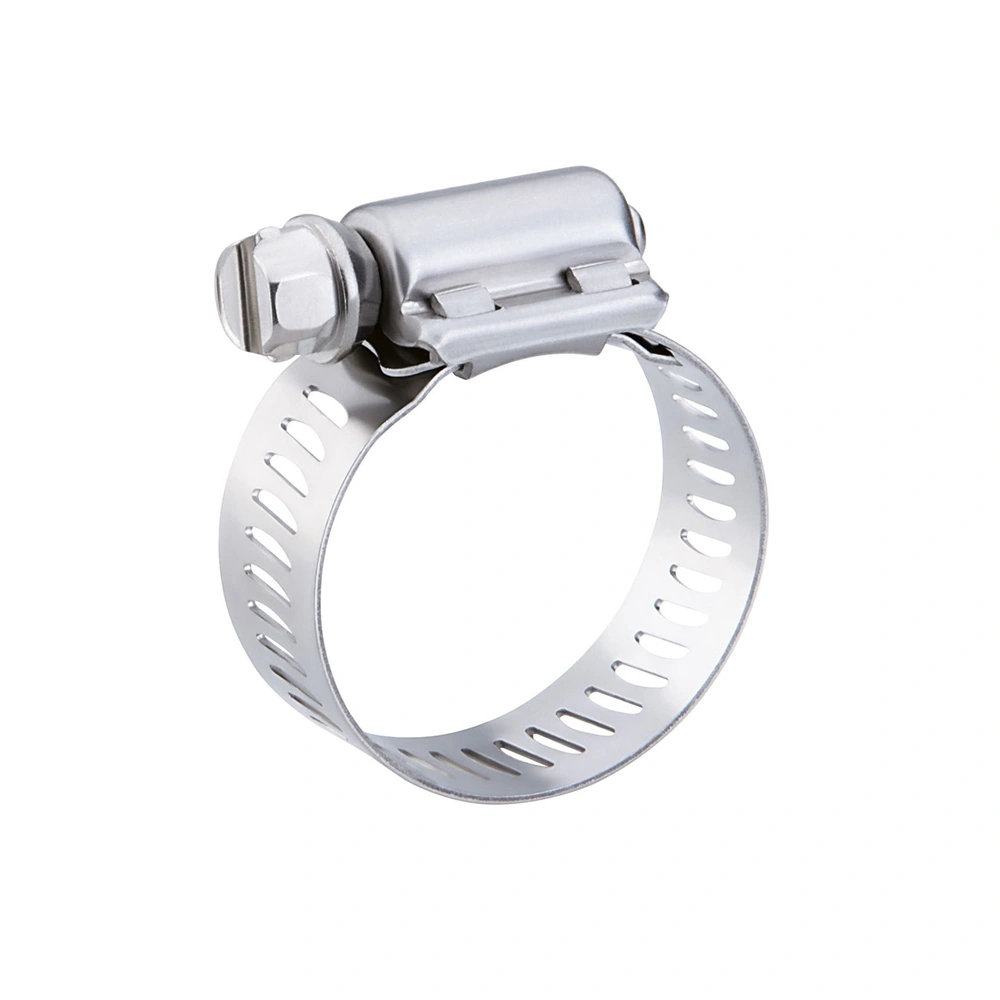

Product Overview – Hose Clamp 0.81 in to 1.50 in
Covering 13/16 in to 1-1/2 in (21–38 mm), the OTX-4SC0016 worm gear hose clamp keeps coolant, fuel and air hoses sealed on trucks, gensets and industrial machinery.
The perforated band and worm screw give quick, adjustable clamping across the full range, making this the everyday clamp for coolant, fuel and air hoses.
Construction: a 301 stainless steel band 1/2 in wide, a zinc plated carbon steel screw with a 5/16 in hex, with a torque rating of 45 in-lbs.
It interchanges with 8 aftermarket part numbers from brands such as Automann, Breeze, Excoh, Gates, including Automann 561.20016, Excoh 4SC0016, Gates 32016.
Tip: always match the clamp size to the outside diameter of the joint, not the pipe or hose inside diameter.
Order the OTX-4SC0016 from OneTouch Exim in single units or bulk cartons; share your quantity and destination for a quick quote.
Frequently Asked Questions
Which part numbers does OTX-4SC0016 replace?
OTX-4SC0016 interchanges with Automann 561.20016, Breeze 62016, Breeze 62016HC, Breeze 62016H, Excoh 4SC0016, Gates 32016 and more. The cross reference table lists all 9 matching numbers.
What hose size does OTX-4SC0016 fit?
It fits hoses with an outside diameter from 13/16 in to 1-1/2 in (21–38 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
