Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | ZINC PLATED CARBON STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 1/2" |
| Torque Range (in-lbs) | 45 |
| SAE | 28 |
| Min. Dia. (in) | 1-5/16 |
| Max. Dia. (in) | 2-1/4 |
| Min. Dia. (mm) | 33 |
| Max. Dia. (mm) | 57 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.20028 | Aftermarket |
| Automann | 56120028 | Aftermarket |
| Breeze | 62028 | Aftermarket |
| Breeze | 62028H | Aftermarket |
| Excoh | 4SC0028 | Aftermarket |
| Gates | 32028 | Aftermarket |
| Tectran | HC28 | Aftermarket |
| Velvac | 022328 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant, Fuel & Air Hoses |
| Clamp Type | Worm Gear Hose Clamp |
| Clamping Range | 1-5/16 in to 2-1/4 in (33–57 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

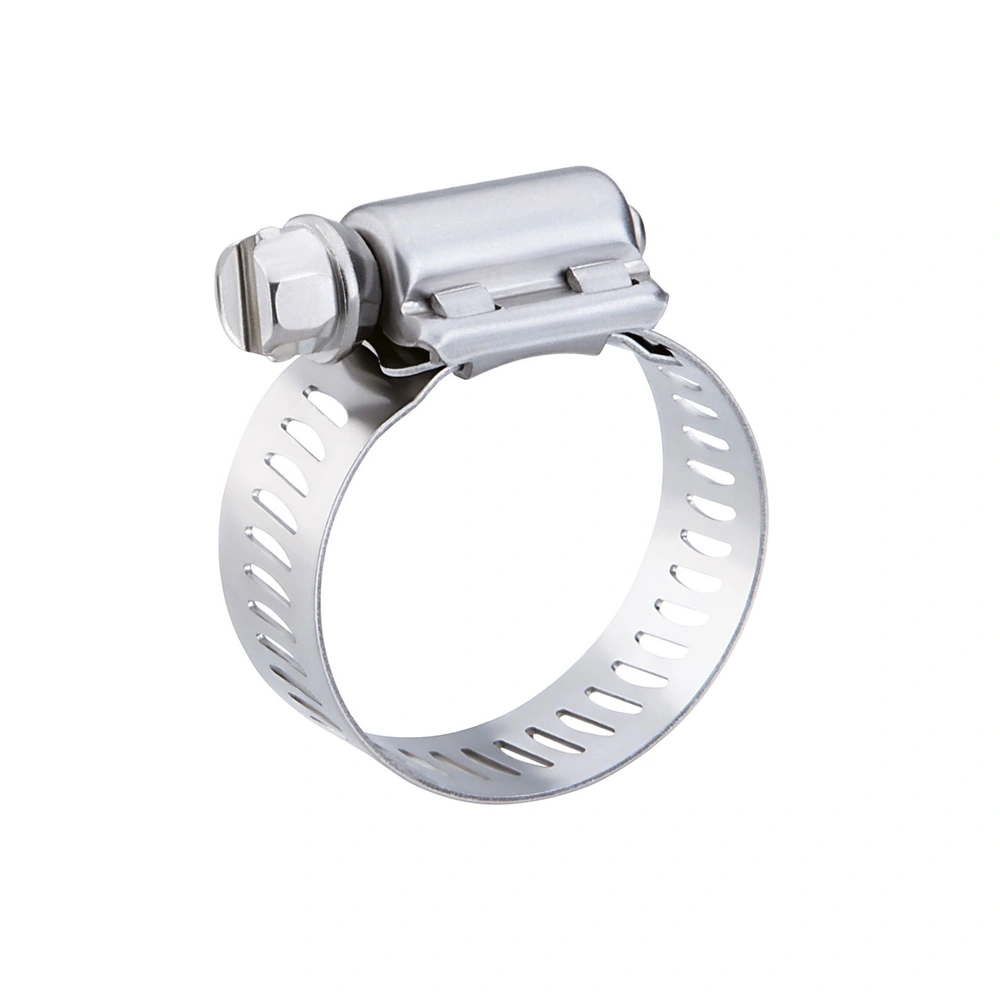

Product Overview – Hose Clamp 1.31 in to 2.25 in
Secure coolant, fuel and air hoses with the OTX-4SC0028 worm gear hose clamp, covering 1-5/16 in to 2-1/4 in (33–57 mm) in a single size.
The perforated band and worm screw give quick, adjustable clamping across the full range, making this the everyday clamp for coolant, fuel and air hoses.
Construction: a 301 stainless steel band 1/2 in wide, a zinc plated carbon steel screw with a 5/16 in hex, with a torque rating of 45 in-lbs.
It interchanges with 7 aftermarket part numbers from brands such as Automann, Breeze, Excoh, Gates, including Automann 561.20028, Excoh 4SC0028, Gates 32028.
Tip: always match the clamp size to the outside diameter of the joint, not the pipe or hose inside diameter.
OneTouch Exim supplies the OTX-4SC0028 for fleet, workshop and distributor orders worldwide. Send us your part number for pricing and availability.
Frequently Asked Questions
Which part numbers does OTX-4SC0028 replace?
OTX-4SC0028 interchanges with Automann 561.20028, Breeze 62028, Breeze 62028H, Excoh 4SC0028, Gates 32028, Tectran HC28 and more. The cross reference table lists all 8 matching numbers.
What hose size does OTX-4SC0028 fit?
It fits hoses with an outside diameter from 1-5/16 in to 2-1/4 in (33–57 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
