Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | ZINC PLATED CARBON STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 1/2" |
| Torque Range (in-lbs) | 45 |
| SAE | 32 |
| Min. Dia. (in) | 1-9/16 |
| Max. Dia. (in) | 2-1/2 |
| Min. Dia. (mm) | 40 |
| Max. Dia. (mm) | 64 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.20032 | Aftermarket |
| Automann | 56120032 | Aftermarket |
| Breeze | 62032 | Aftermarket |
| Breeze | 62032H | Aftermarket |
| Excoh | 4SC0032 | Aftermarket |
| Gates | 32032 | Aftermarket |
| Velvac | 022332 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant, Fuel & Air Hoses |
| Clamp Type | Worm Gear Hose Clamp |
| Clamping Range | 1-9/16 in to 2-1/2 in (40–64 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |
Product Overview – Hose Clamp 1.56 in to 2.50 in

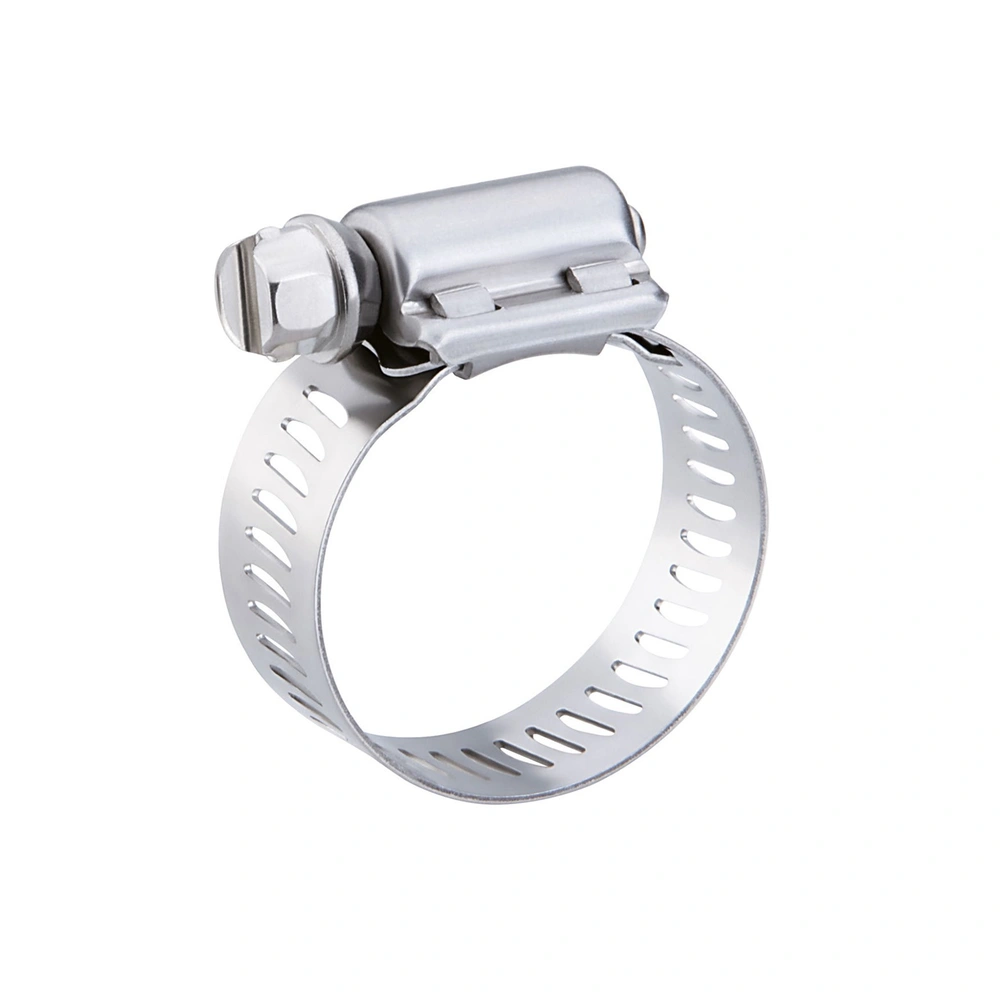

The Hose Clamp 1.56 in to 2.50 in (Part No. OTX-4SC0032) is a worm gear hose clamp with a clamping range of 1-9/16 in to 2-1/2 in (40–64 mm), made for coolant, fuel and air hoses on trucks, buses and off-highway equipment.
A worm gear clamp is easy to install and re-use with a nut driver or screwdriver, and holds hose connections tight in workshops, fleets and plant maintenance.
Construction: a 301 stainless steel band 1/2 in wide, a zinc plated carbon steel screw with a 5/16 in hex, with a torque rating of 45 in-lbs.
It interchanges with 6 aftermarket part numbers from brands such as Automann, Breeze, Excoh, Gates, including Automann 561.20032, Excoh 4SC0032, Gates 32032.
Tip: tighten evenly to the recommended torque and re-check after the first heat cycle.
Order the OTX-4SC0032 from OneTouch Exim in single units or bulk cartons; share your quantity and destination for a quick quote.
Frequently Asked Questions
Which part numbers does OTX-4SC0032 replace?
OTX-4SC0032 interchanges with Automann 561.20032, Breeze 62032H, Breeze 62032, Excoh 4SC0032, Gates 32032, Velvac 022332. The cross reference table lists all 7 matching numbers.
What hose size does OTX-4SC0032 fit?
It fits hoses with an outside diameter from 1-9/16 in to 2-1/2 in (40–64 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
