SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | ZINC PLATED CARBON STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 1/2" |
| Torque Range (in-lbs) | 45 |
| SAE | 36 |
| Min. Dia. (in) | 1-13/16 |
| Max. Dia. (in) | 2-3/4 |
| Min. Dia. (mm) | 46 |
| Max. Dia. (mm) | 70 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.20036 | Aftermarket |
| Automann | 56120036 | Aftermarket |
| Breeze | 62036 | Aftermarket |
| Breeze | 62036H | Aftermarket |
| Breeze | 62036HC | Aftermarket |
| Excoh | 4SC0036 | Aftermarket |
| Gates | 32036 | Aftermarket |
| Tectran | HC36 | Aftermarket |
| Velvac | 022336 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant, Fuel & Air Hoses |
| Clamp Type | Worm Gear Hose Clamp |
| Clamping Range | 1-13/16 in to 2-3/4 in (46–70 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |
Product Overview – Hose Clamp 1.81 in to 2.75 in

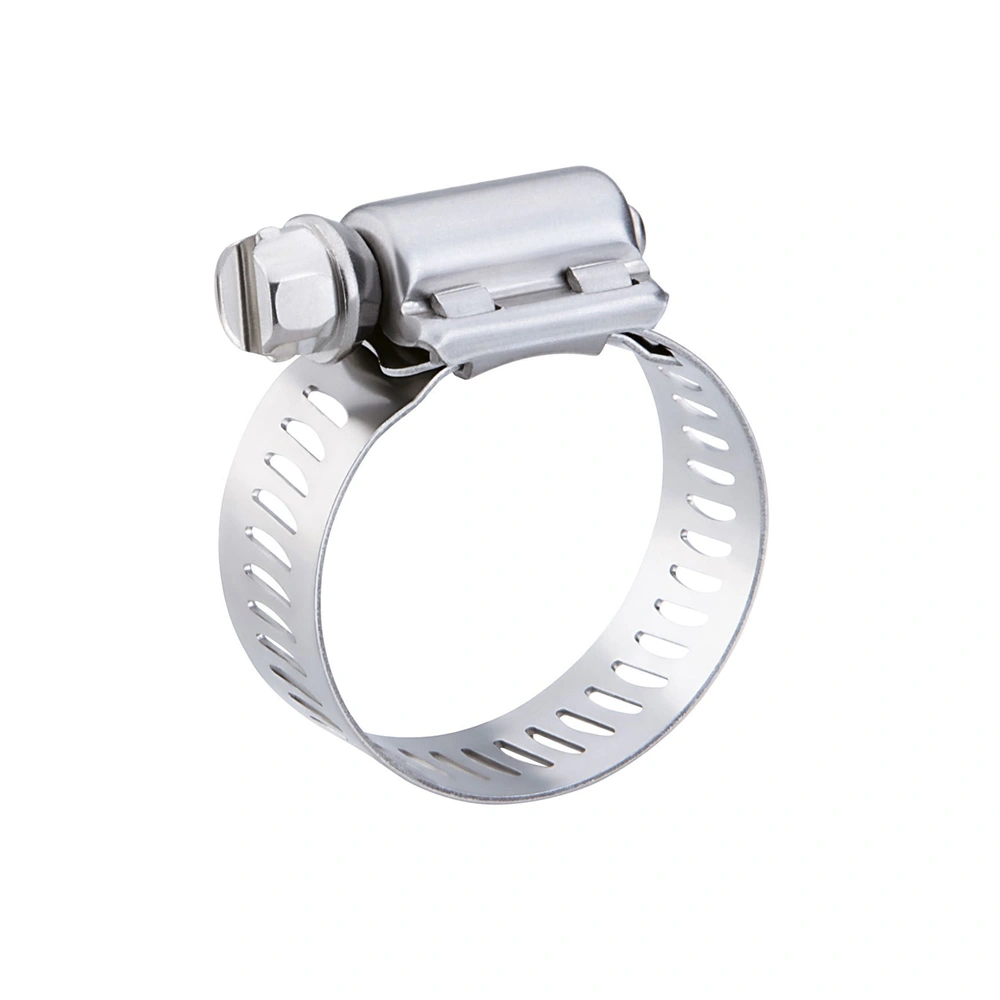

Part No. OTX-4SC0036 is a worm gear hose clamp that fits hoses from 1-13/16 in to 2-3/4 in (46–70 mm), ideal for coolant, fuel and air hoses in heavy-duty service.
A worm gear clamp is easy to install and re-use with a nut driver or screwdriver, and holds hose connections tight in workshops, fleets and plant maintenance.
Construction: a 301 stainless steel band 1/2 in wide, a zinc plated carbon steel screw with a 5/16 in hex, with a torque rating of 45 in-lbs.
Looking for Automann 561.20036, Excoh 4SC0036? OTX-4SC0036 is the matching interchange; see the cross-reference table below for every equivalent number.
Tip: replace clamps whenever a joint is opened for service; a used clamp may not seal to the same load.
Order the OTX-4SC0036 from OneTouch Exim in single units or bulk cartons; share your quantity and destination for a quick quote.
Frequently Asked Questions
Which part numbers does OTX-4SC0036 replace?
OTX-4SC0036 interchanges with Automann 561.20036, Breeze 62036HC, Breeze 62036, Breeze 62036H, Excoh 4SC0036, Gates 32036 and more. The cross reference table lists all 9 matching numbers.
What hose size does OTX-4SC0036 fit?
It fits hoses with an outside diameter from 1-13/16 in to 2-3/4 in (46–70 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
