SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | ZINC PLATED CARBON STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 1/2" |
| Torque Range (in-lbs) | 45 |
| SAE | 40 |
| Min. Dia. (in) | 2-1/16 |
| Max. Dia. (in) | 3 |
| Min. Dia. (mm) | 52 |
| Max. Dia. (mm) | 76 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.20040 | Aftermarket |
| Automann | 56120040 | Aftermarket |
| Breeze | 62040 | Aftermarket |
| Breeze | 62040H | Aftermarket |
| Breeze | 62040HC | Aftermarket |
| Excoh | 4SC0040 | Aftermarket |
| Gates | 32040 | Aftermarket |
| Tectran | HC40 | Aftermarket |
| Velvac | 022340 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant, Fuel & Air Hoses |
| Clamp Type | Worm Gear Hose Clamp |
| Clamping Range | 2-1/16 in to 3 in (52–76 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

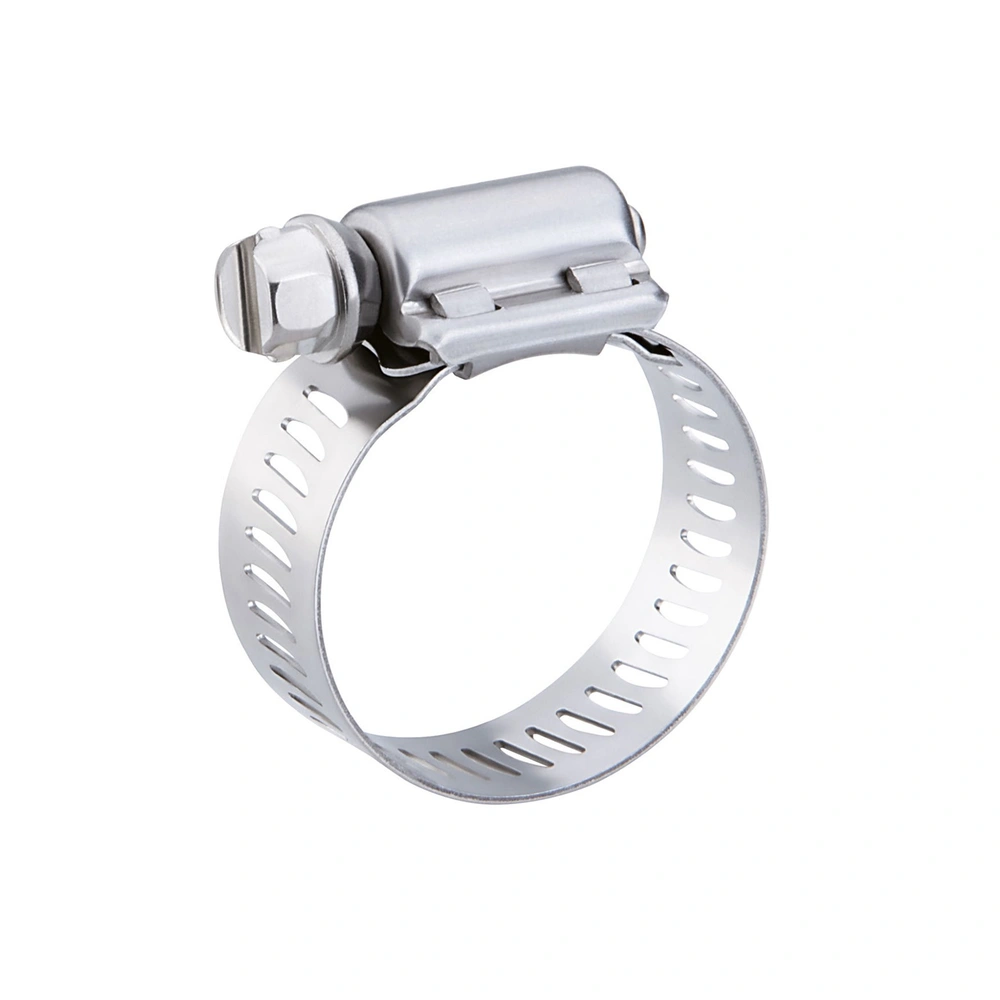

Product Overview – Hose Clamp 2.06 in to 3.00 in
Part No. OTX-4SC0040 is a worm gear hose clamp that fits hoses from 2-1/16 in to 3 in (52–76 mm), ideal for coolant, fuel and air hoses in heavy-duty service.
The perforated band and worm screw give quick, adjustable clamping across the full range, making this the everyday clamp for coolant, fuel and air hoses.
Construction: a 301 stainless steel band 1/2 in wide, a zinc plated carbon steel screw with a 5/16 in hex, with a torque rating of 45 in-lbs.
Looking for Automann 561.20040, Excoh 4SC0040? OTX-4SC0040 is the matching interchange; see the cross-reference table below for every equivalent number.
Tip: tighten evenly to the recommended torque and re-check after the first heat cycle.
OneTouch Exim supplies the OTX-4SC0040 for fleet, workshop and distributor orders worldwide. Send us your part number for pricing and availability.
Frequently Asked Questions
Which part numbers does OTX-4SC0040 replace?
OTX-4SC0040 interchanges with Automann 561.20040, Breeze 62040HC, Breeze 62040, Breeze 62040H, Excoh 4SC0040, Gates 32040 and more. The cross reference table lists all 9 matching numbers.
What hose size does OTX-4SC0040 fit?
It fits hoses with an outside diameter from 2-1/16 in to 3 in (52–76 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
