SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | ZINC PLATED CARBON STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 1/2" |
| Torque Range (in-lbs) | 45 |
| SAE | 60 |
| Min. Dia. (in) | 3-5/16 |
| Max. Dia. (in) | 4-1/4 |
| Min. Dia. (mm) | 84 |
| Max. Dia. (mm) | 108 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.20060 | Aftermarket |
| Automann | 56120060 | Aftermarket |
| Breeze | 62060 | Aftermarket |
| Breeze | 62060H | Aftermarket |
| Dynacraft | D2006-2335 | Aftermarket |
| Dynacraft | D2006-3895 | Aftermarket |
| Dynacraft | D20062335 | Aftermarket |
| Dynacraft | D20063895 | Aftermarket |
| Excoh | 4SC0060 | Aftermarket |
| Fairview | HC6-60 | Aftermarket |
| Fairview | HC660 | Aftermarket |
| Fleetpride | 62060HC | Aftermarket |
| Imperial | 72315 | Aftermarket |
| PDC | 62060H | Aftermarket |
| Tramec Sloan | 491060 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant, Fuel & Air Hoses |
| Clamp Type | Worm Gear Hose Clamp |
| Clamping Range | 3-5/16 in to 4-1/4 in (84–108 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

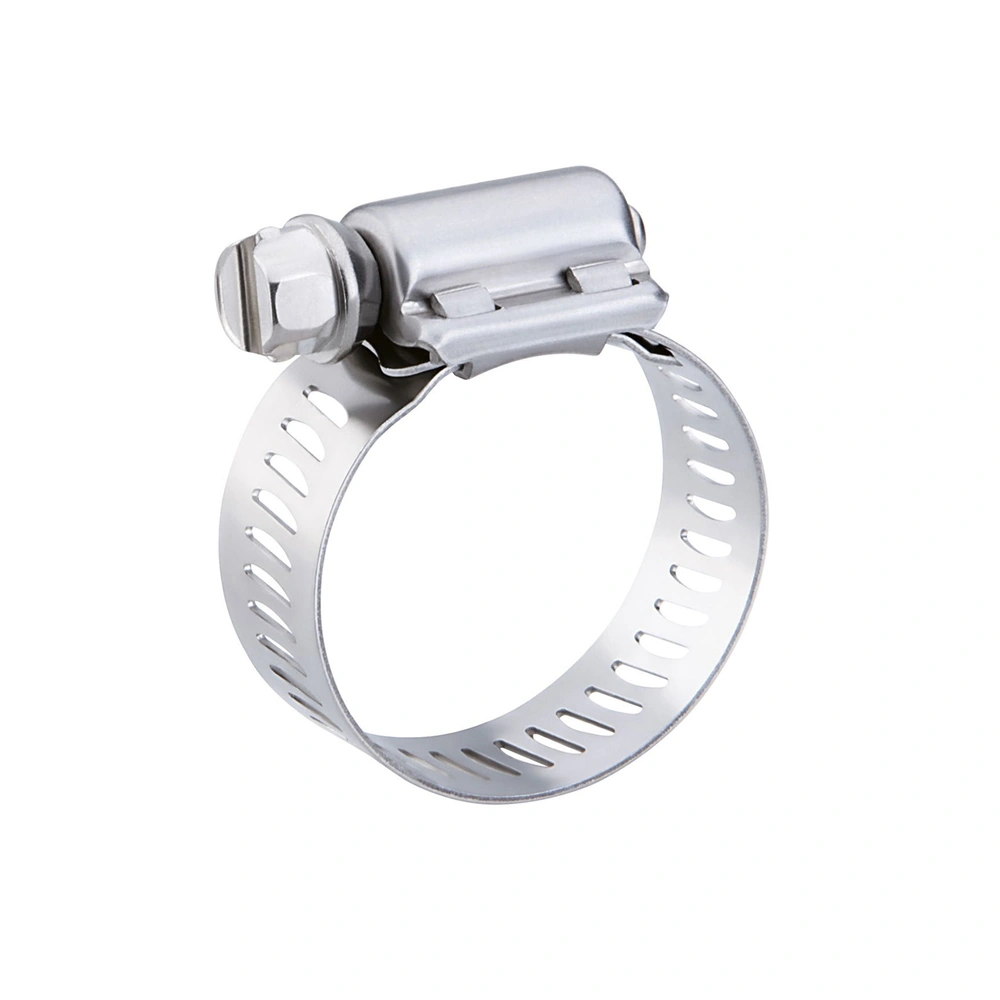

Product Overview – Hose Clamp 3.31 in to 4.25 in
Hose Clamp 3.31 in to 4.25 in (OTX-4SC0060) is a reliable worm gear hose clamp for coolant, fuel and air hoses, with a clamping range of 3-5/16 in to 4-1/4 in (84–108 mm).
A worm gear clamp is easy to install and re-use with a nut driver or screwdriver, and holds hose connections tight in workshops, fleets and plant maintenance.
Construction: a 301 stainless steel band 1/2 in wide, a zinc plated carbon steel screw with a 5/16 in hex, with a torque rating of 45 in-lbs.
It interchanges with 11 aftermarket part numbers from brands such as Automann, Breeze, Dynacraft, Excoh, including Automann 561.20060, Dynacraft D2006-2335, Dynacraft D2006-3895.
Tip: always match the clamp size to the outside diameter of the joint, not the pipe or hose inside diameter.
Distributors and fleet buyers can request volume pricing on OTX-4SC0060 from OneTouch Exim by email or WhatsApp.
Frequently Asked Questions
Which part numbers does OTX-4SC0060 replace?
OTX-4SC0060 interchanges with Automann 561.20060, Breeze 62060, Breeze 62060H, Dynacraft D2006-2335, Dynacraft D2006-3895, Excoh 4SC0060 and more. The cross reference table lists all 15 matching numbers.
What hose size does OTX-4SC0060 fit?
It fits hoses with an outside diameter from 3-5/16 in to 4-1/4 in (84–108 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
