SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | ZINC PLATED CARBON STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 1/2" |
| Torque Range (in-lbs) | 45 |
| SAE | 96 |
| Min. Dia. (in) | 3-5/8 |
| Max. Dia. (in) | 6-1/2 |
| Min. Dia. (mm) | 92 |
| Max. Dia. (mm) | 165 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.20096 | Aftermarket |
| Automann | 56120096 | Aftermarket |
| Breeze | 62096 | Aftermarket |
| Breeze | 62096H | Aftermarket |
| Dynacraft | D2006-2300 | Aftermarket |
| Dynacraft | D2006-3960 | Aftermarket |
| Dynacraft | D20062300 | Aftermarket |
| Dynacraft | D20063960 | Aftermarket |
| Excoh | 4SC0096 | Aftermarket |
| Fairview | HC6-96 | Aftermarket |
| Fairview | HC696 | Aftermarket |
| Imperial | 72319 | Aftermarket |
| Murray | H9600C | Aftermarket |
| Spares | H-96 | Aftermarket |
| Spares | H96 | Aftermarket |
| Tectran | HC96 | Aftermarket |
| Tramec Sloan | 491096 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant, Fuel & Air Hoses |
| Clamp Type | Worm Gear Hose Clamp |
| Clamping Range | 3-5/8 in to 6-1/2 in (92–165 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |
Product Overview – Hose Clamp 5.620 in to 6.50 in

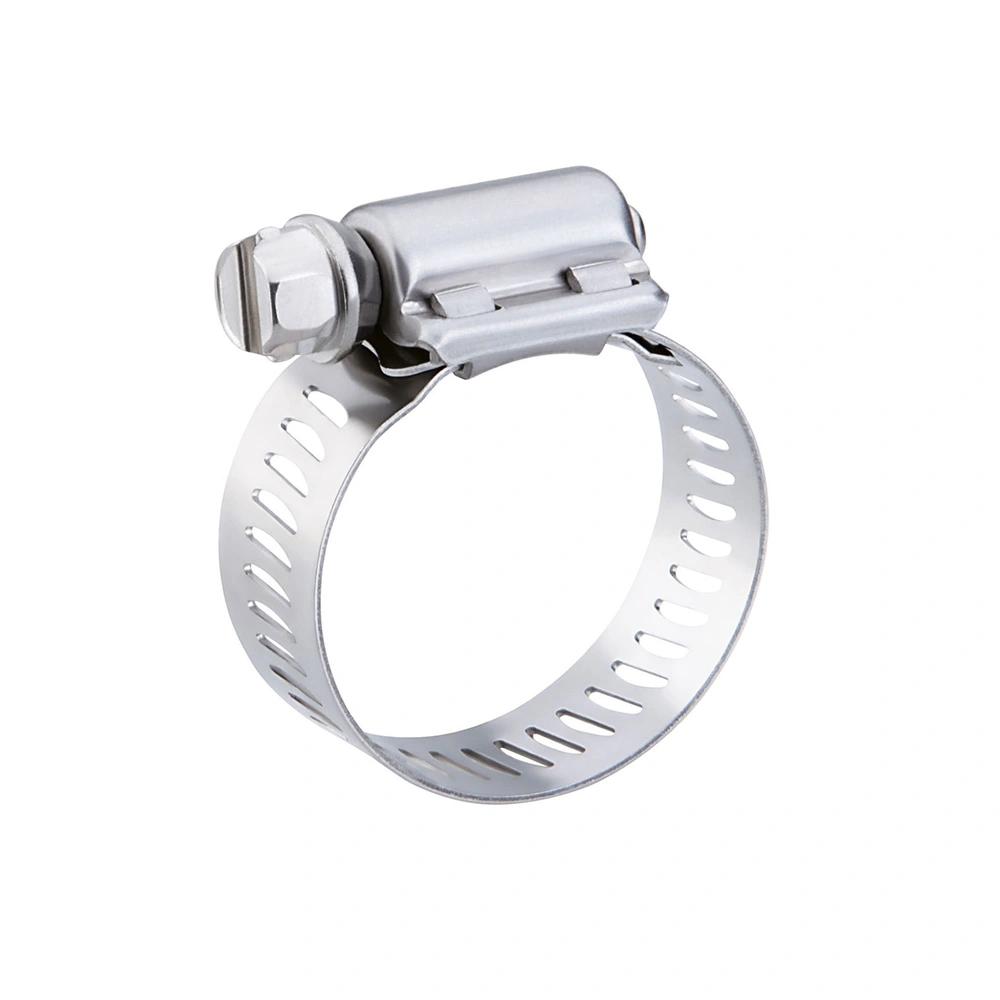

Part No. OTX-4SC0096 is a worm gear hose clamp that fits hoses from 3-5/8 in to 6-1/2 in (92–165 mm), ideal for coolant, fuel and air hoses in heavy-duty service.
The perforated band and worm screw give quick, adjustable clamping across the full range, making this the everyday clamp for coolant, fuel and air hoses.
Construction: a 301 stainless steel band 1/2 in wide, a zinc plated carbon steel screw with a 5/16 in hex, with a torque rating of 45 in-lbs.
Looking for Automann 561.20096, Dynacraft D2006-2300? OTX-4SC0096 is the matching interchange; see the cross-reference table below for every equivalent number.
Tip: keep a few common sizes in stock to cut vehicle downtime during routine maintenance.
Need bulk quantities? OneTouch Exim exports heavy-duty clamps to distributors and fleets. Request a quote for OTX-4SC0096 today.
Frequently Asked Questions
Which part numbers does OTX-4SC0096 replace?
OTX-4SC0096 interchanges with Automann 561.20096, Breeze 62096H, Breeze 62096, Dynacraft D2006-2300, Dynacraft D2006-3960, Excoh 4SC0096 and more. The cross reference table lists all 17 matching numbers.
What hose size does OTX-4SC0096 fit?
It fits hoses with an outside diameter from 3-5/8 in to 6-1/2 in (92–165 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
