SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | 410 STAINLESS STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 1/2" |
| Torque Range (in-lbs) | 45 |
| SAE | 12 |
| Min. Dia. (in) | 11/16 |
| Max. Dia. (in) | 1-1/4 |
| Min. Dia. (mm) | 17 |
| Max. Dia. (mm) | 32 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Acdelco | 32212C | Aftermarket |
| Aero-Seal | 20012 | Aftermarket |
| Amgauge | CC12 | Aftermarket |
| Automann | 561.22012 | Aftermarket |
| Automann | 56122012 | Aftermarket |
| Beck/Arnley | 144-0023 | Aftermarket |
| Beck/Arnley | 1440023 | Aftermarket |
| Breeze | 64012H | Aftermarket |
| Dayco | 92012 | Aftermarket |
| Dayco | KH12 | Aftermarket |
| Excoh | 4SS0012 | Aftermarket |
| Gates | 32212 | Aftermarket |
| Goodyear | 51312 | Aftermarket |
| Ideal | 6812 | Aftermarket |
| Ideal | 6812590 | Aftermarket |
| Ideal | 630040012 | Aftermarket |
| Ideal | 630040012051 | Aftermarket |
| Murray | H16SS00C | Aftermarket |
| NAPA | 705-1103 | Aftermarket |
| NAPA | 7051103 | Aftermarket |
| Norma | 0361 0116 025 | Aftermarket |
| Norma | 3610116025 | Aftermarket |
| Norma | 03610116025 | Aftermarket |
| Norton | 033-12 | Aftermarket |
| Norton | 03312 | Aftermarket |
| Sterling | H112MS | OEM |
| Sure-Tite | 12HS | Aftermarket |
| Sure-Tite | 12KS3 | Aftermarket |
| Sure-Tite | 16KS3 | Aftermarket |
| Sure-Tite | C12PS | Aftermarket |
| Tramec Sloan | 491712 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant, Fuel & Air Hoses |
| Clamp Type | Worm Gear Hose Clamp |
| OEM Makes | Sterling |
| Clamping Range | 11/16 in to 1-1/4 in (17–32 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

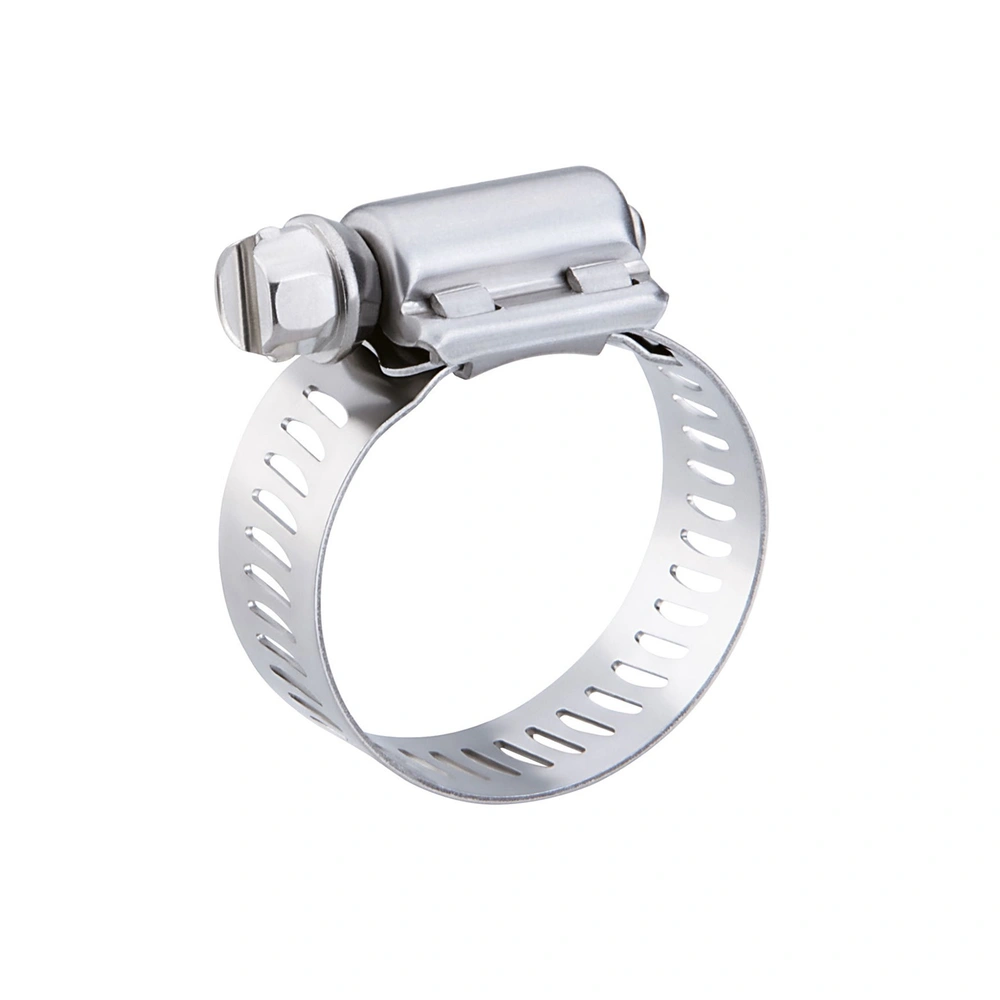

Product Overview – Hose Clamp Stainless Steel All 0.69 in to 1.25 in
When a standard clamp is not enough, the OTX-4SS0012 worm gear hose clamp (11/16 in to 1-1/4 in (17–32 mm)) gives a dependable seal on coolant, fuel and air hoses.
A worm gear clamp is easy to install and re-use with a nut driver or screwdriver, and holds hose connections tight in workshops, fleets and plant maintenance.
Construction: a 301 stainless steel band 1/2 in wide, a 410 stainless steel screw with a 5/16 in hex, with a torque rating of 45 in-lbs.
It cross-references to OEM part number Sterling H112MS and 25 aftermarket numbers, so you can match the exact clamp you are replacing.
Tip: always match the clamp size to the outside diameter of the joint, not the pipe or hose inside diameter.
Need bulk quantities? OneTouch Exim exports heavy-duty clamps to distributors and fleets. Request a quote for OTX-4SS0012 today.
Frequently Asked Questions
Which part numbers does OTX-4SS0012 replace?
OTX-4SS0012 interchanges with Sterling H112MS, Acdelco 32212C, Aero-Seal 20012, Amgauge CC12, Automann 561.22012, Beck/Arnley 144-0023 and more. The cross reference table lists all 31 matching numbers.
What hose size does OTX-4SS0012 fit?
It fits hoses with an outside diameter from 11/16 in to 1-1/4 in (17–32 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
