SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | 410 STAINLESS STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 1/2" |
| Torque Range (in-lbs) | 45 |
| SAE | 24 |
| Min. Dia. (in) | 1-1/16 |
| Max. Dia. (in) | 2 |
| Min. Dia. (mm) | 27 |
| Max. Dia. (mm) | 51 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Acdelco | 32224C | Aftermarket |
| Aero-Seal | 20024 | Aftermarket |
| Amgauge | CC24 | Aftermarket |
| Automann | 561.22024 | Aftermarket |
| Automann | 56122024 | Aftermarket |
| Breeze | 64024H | Aftermarket |
| Dayco | 92024 | Aftermarket |
| Dayco | 92302 | Aftermarket |
| Dayco | K24S | Aftermarket |
| Excoh | 4SS0024 | Aftermarket |
| Gates | 32224 | Aftermarket |
| Goodyear | 51324 | Aftermarket |
| Ideal | 6824 | Aftermarket |
| Ideal | 6824590 | Aftermarket |
| Ideal | 630040024 | Aftermarket |
| Ideal | 630040024051 | Aftermarket |
| Murray | H28SS00C | Aftermarket |
| NAPA | 705-1106 | Aftermarket |
| NAPA | 7051106 | Aftermarket |
| Norma | 0361 0116 039 | Aftermarket |
| Norma | 3610116039 | Aftermarket |
| Norma | 03610116039 | Aftermarket |
| Norton | 033-24 | Aftermarket |
| Norton | 03324 | Aftermarket |
| Sterling | H124MS | OEM |
| Sure-Tite | 24HS | Aftermarket |
| Sure-Tite | 24KS3 | Aftermarket |
| Sure-Tite | C24PS | Aftermarket |
| Tramec Sloan | 491724 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant, Fuel & Air Hoses |
| Clamp Type | Worm Gear Hose Clamp |
| OEM Makes | Sterling |
| Clamping Range | 1-1/16 in to 2 in (27–51 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

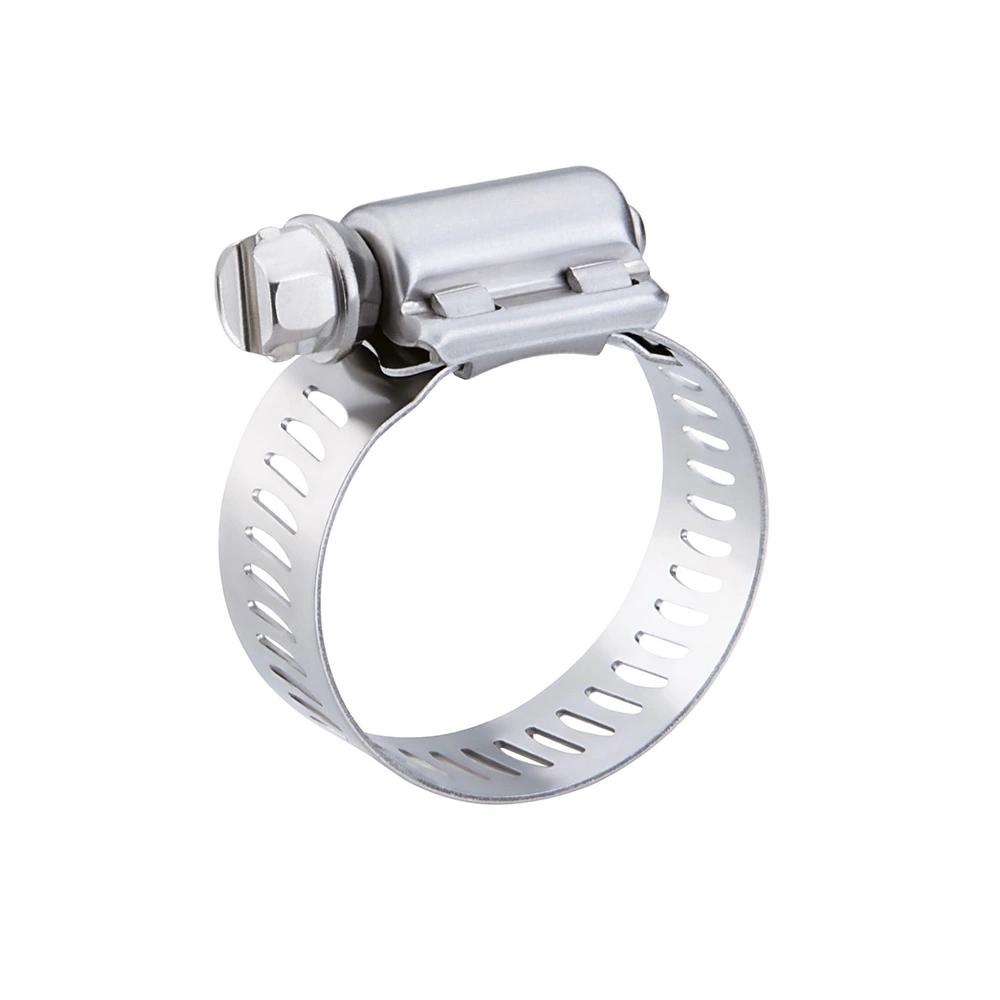

Product Overview – Hose Clamp Stainless Steel All 1.06 in to 2 in
Secure coolant, fuel and air hoses with the OTX-4SS0024 worm gear hose clamp, covering 1-1/16 in to 2 in (27–51 mm) in a single size.
A worm gear clamp is easy to install and re-use with a nut driver or screwdriver, and holds hose connections tight in workshops, fleets and plant maintenance.
Construction: a 301 stainless steel band 1/2 in wide, a 410 stainless steel screw with a 5/16 in hex, with a torque rating of 45 in-lbs.
It cross-references to OEM part number Sterling H124MS and 24 aftermarket numbers, so you can match the exact clamp you are replacing.
Order the OTX-4SS0024 from OneTouch Exim in single units or bulk cartons; share your quantity and destination for a quick quote.
Frequently Asked Questions
Which part numbers does OTX-4SS0024 replace?
OTX-4SS0024 interchanges with Sterling H124MS, Acdelco 32224C, Aero-Seal 20024, Amgauge CC24, Automann 561.22024, Breeze 64024H and more. The cross reference table lists all 29 matching numbers.
What hose size does OTX-4SS0024 fit?
It fits hoses with an outside diameter from 1-1/16 in to 2 in (27–51 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
