SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | ZINC PLATED CARBON STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 1/2" |
| Torque Range (in-lbs) | 25-37 |
| SAE | 10 |
| Min. Dia. (in) | 9/16 |
| Max. Dia. (in) | 1-1/16 |
| Min. Dia. (mm) | 14 |
| Max. Dia. (mm) | 27 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.20010 | Aftermarket |
| Automann | 56120010 | Aftermarket |
| Breeze | 62010 | Aftermarket |
| Breeze | 62010H | Aftermarket |
| Excoh | 4SCH010 | Aftermarket |
| Gates | 32010 | Aftermarket |
| Murray | H1000C | Aftermarket |
| Tectran | HC10 | Aftermarket |
| Velvac | 022310 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant, Fuel & Air Hoses |
| Clamp Type | Lined Worm Gear Hose Clamp |
| Clamping Range | 9/16 in to 1-1/16 in (14–27 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

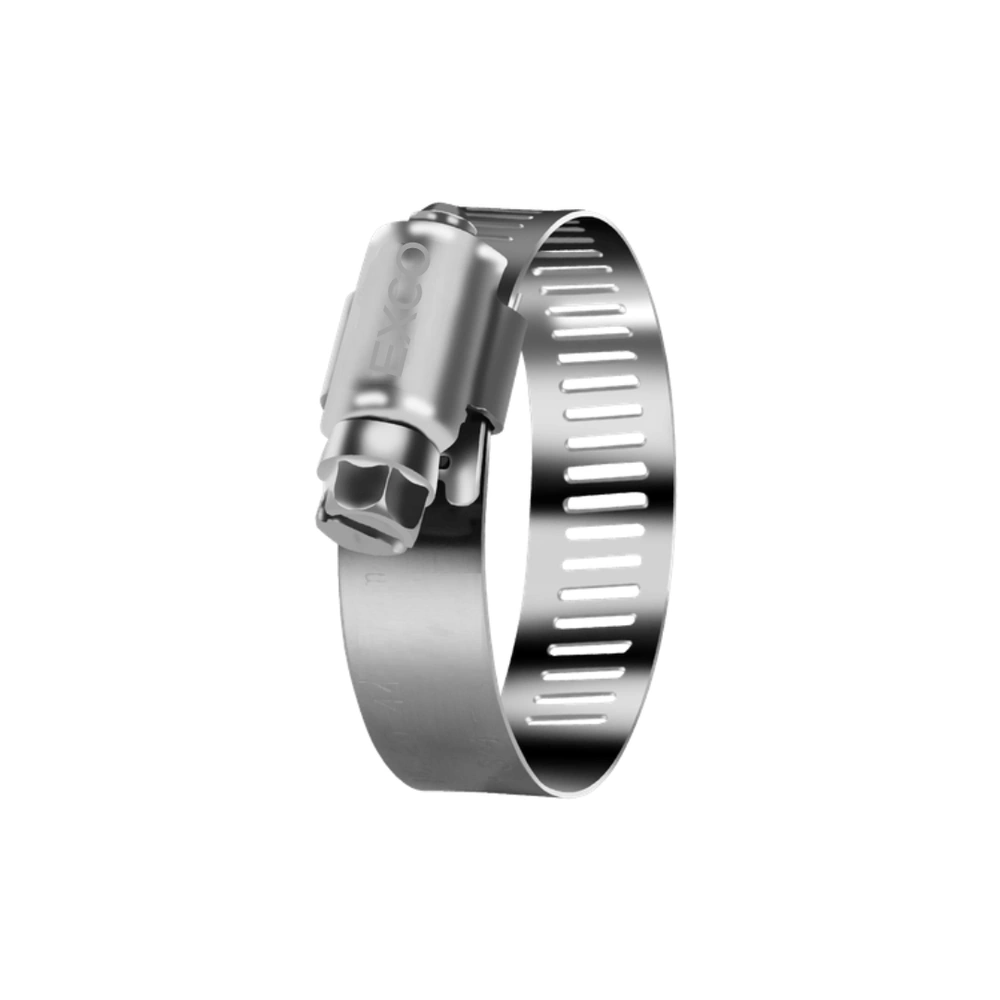

Product Overview – Lined Clamp 0.56 in to 1.06 in
The OTX-4SCH010 is a lined worm gear hose clamp sized for 9/16 in to 1-1/16 in (14–27 mm), used by fleets and workshops on coolant, fuel and air hoses.
A smooth band underside reduces hose damage while keeping the convenience of a standard worm gear clamp.
Construction: a 301 stainless steel band 1/2 in wide, a zinc plated carbon steel screw with a 5/16 in hex, with a torque rating of 25-37 in-lbs.
It interchanges with 8 aftermarket part numbers from brands such as Automann, Breeze, Excoh, Gates, including Automann 561.20010, Excoh 4SCH010, Gates 32010.
Tip: keep a few common sizes in stock to cut vehicle downtime during routine maintenance.
OneTouch Exim supplies the OTX-4SCH010 for fleet, workshop and distributor orders worldwide. Send us your part number for pricing and availability.
Frequently Asked Questions
Which part numbers does OTX-4SCH010 replace?
OTX-4SCH010 interchanges with Automann 561.20010, Breeze 62010H, Breeze 62010, Excoh 4SCH010, Gates 32010, Murray H1000C and more. The cross reference table lists all 9 matching numbers.
What hose size does OTX-4SCH010 fit?
It fits hoses with an outside diameter from 9/16 in to 1-1/16 in (14–27 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
