Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | ZINC PLATED CARBON STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 1/2" |
| Torque Range (in-lbs) | 25-37 |
| SAE | 16 |
| Min. Dia. (in) | 3/4 |
| Max. Dia. (in) | 1-1/2 |
| Min. Dia. (mm) | 19 |
| Max. Dia. (mm) | 38 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.20016 | Aftermarket |
| Automann | 56120016 | Aftermarket |
| Breeze | 62016 | Aftermarket |
| Breeze | 62016HC | Aftermarket |
| Excoh | 4SCH016 | Aftermarket |
| Gates | 32016 | Aftermarket |
| Murray | H1600C | Aftermarket |
| Velvac | 022316 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant, Fuel & Air Hoses |
| Clamp Type | Lined Worm Gear Hose Clamp |
| Clamping Range | 3/4 in to 1-1/2 in (19–38 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

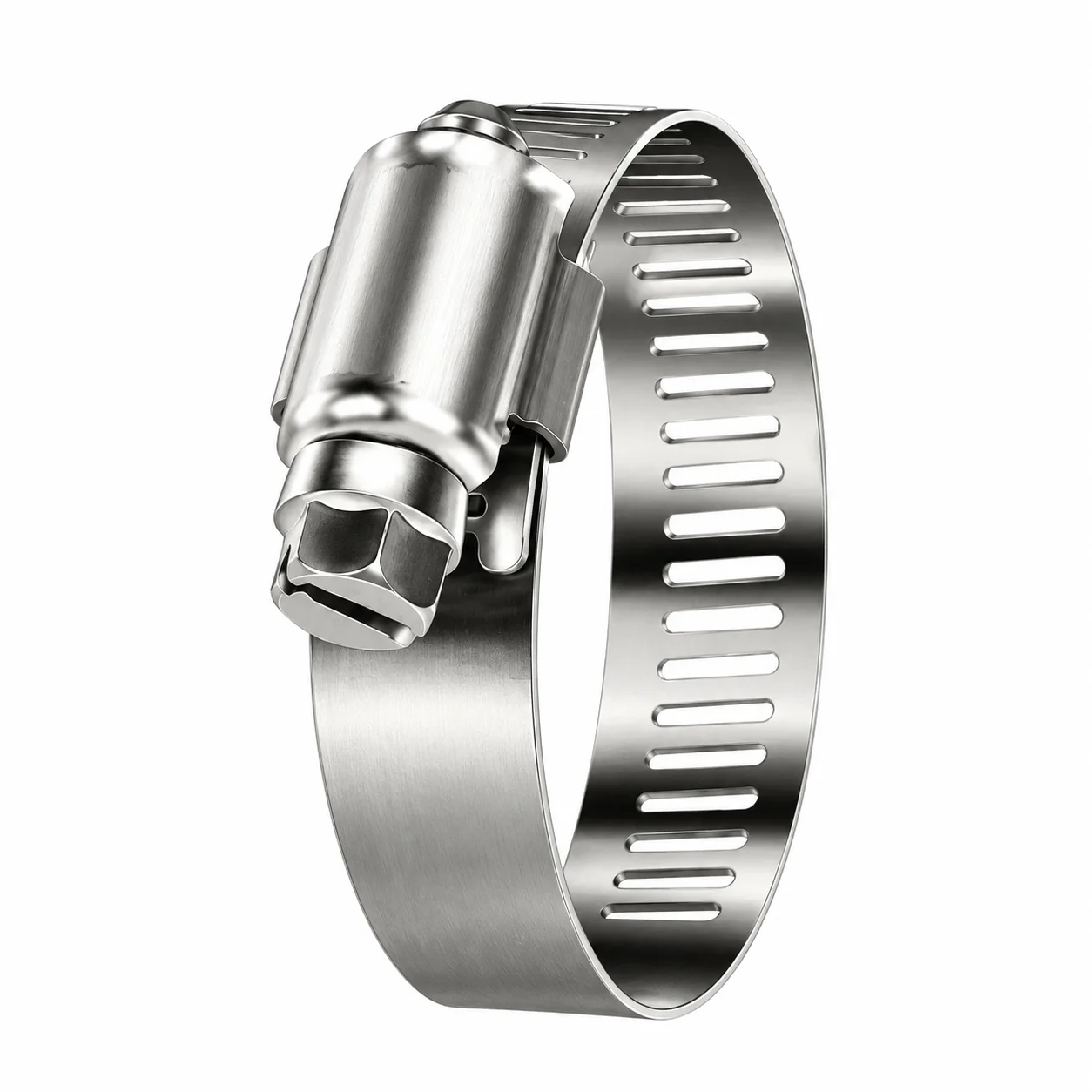

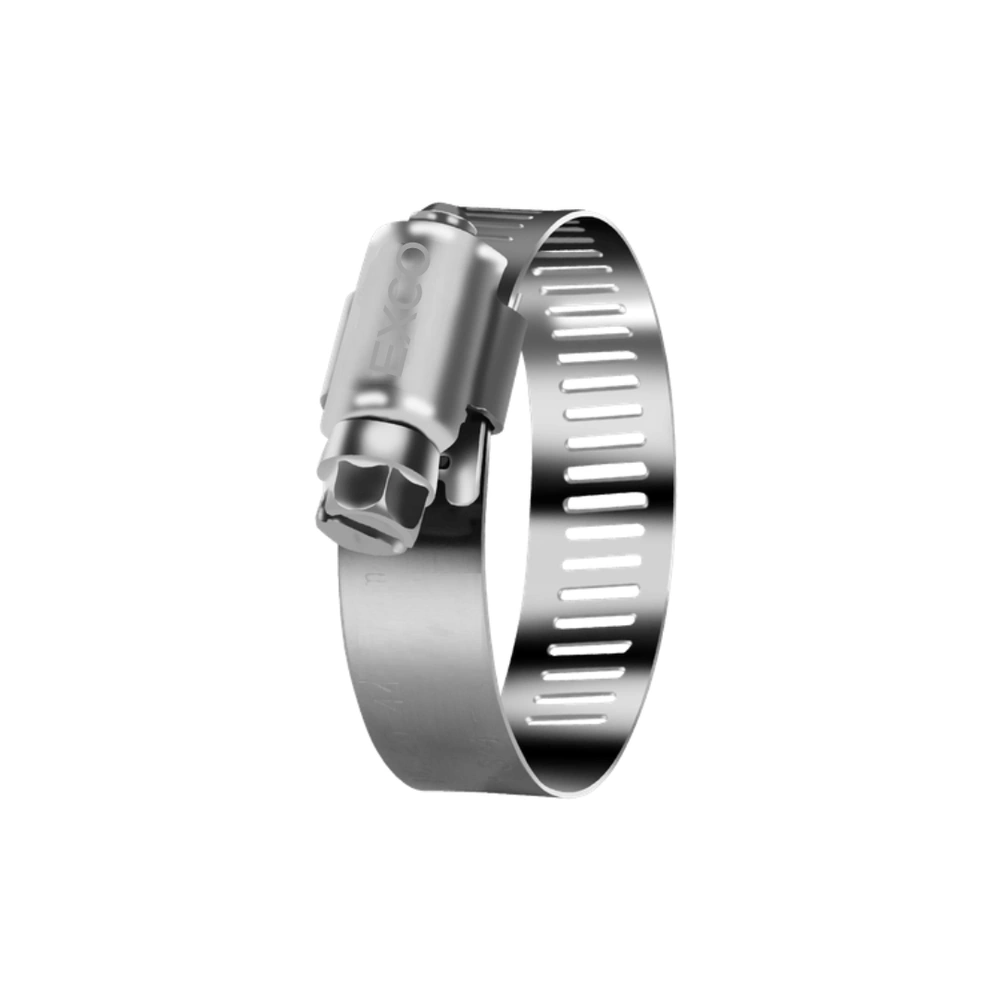

Product Overview – Lined Clamp 0.81 in to 1.50 in
Lined Clamp 0.81 in to 1.50 in (OTX-4SCH016) is a reliable lined worm gear hose clamp for coolant, fuel and air hoses, with a clamping range of 3/4 in to 1-1/2 in (19–38 mm).
A smooth band underside reduces hose damage while keeping the convenience of a standard worm gear clamp.
Construction: a 301 stainless steel band 1/2 in wide, a zinc plated carbon steel screw with a 5/16 in hex, with a torque rating of 25-37 in-lbs.
Looking for Automann 561.20016, Excoh 4SCH016? OTX-4SCH016 is the matching interchange; see the cross-reference table below for every equivalent number.
Tip: check part numbers against the cross-reference table below before ordering to avoid fitment errors.
Distributors and fleet buyers can request volume pricing on OTX-4SCH016 from OneTouch Exim by email or WhatsApp.
Frequently Asked Questions
Which part numbers does OTX-4SCH016 replace?
OTX-4SCH016 interchanges with Automann 561.20016, Breeze 62016, Breeze 62016HC, Excoh 4SCH016, Gates 32016, Murray H1600C and more. The cross reference table lists all 8 matching numbers.
What hose size does OTX-4SCH016 fit?
It fits hoses with an outside diameter from 3/4 in to 1-1/2 in (19–38 mm).
