SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | ZINC PLATED CARBON STEEL |
| Hex Screw (in) | 5/16" |
| Band Width (in) | 1/2" |
| Torque Range (in-lbs) | 45 |
| SAE | 48 |
| Min. Dia. (in) | 2-9/16 |
| Max. Dia. (in) | 3-1/2 |
| Min. Dia. (mm) | 65 |
| Max. Dia. (mm) | 89 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.20048 | Aftermarket |
| Automann | 56120048 | Aftermarket |
| Breeze | 62048 | Aftermarket |
| Breeze | 62048H | Aftermarket |
| Excoh | 4SC0048 | Aftermarket |
| Gates | 32048 | Aftermarket |
| Tectran | HC48 | Aftermarket |
| Velvac | 022348 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant, Fuel & Air Hoses |
| Clamp Type | Worm Gear Hose Clamp |
| Clamping Range | 2-9/16 in to 3-1/2 in (65–89 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

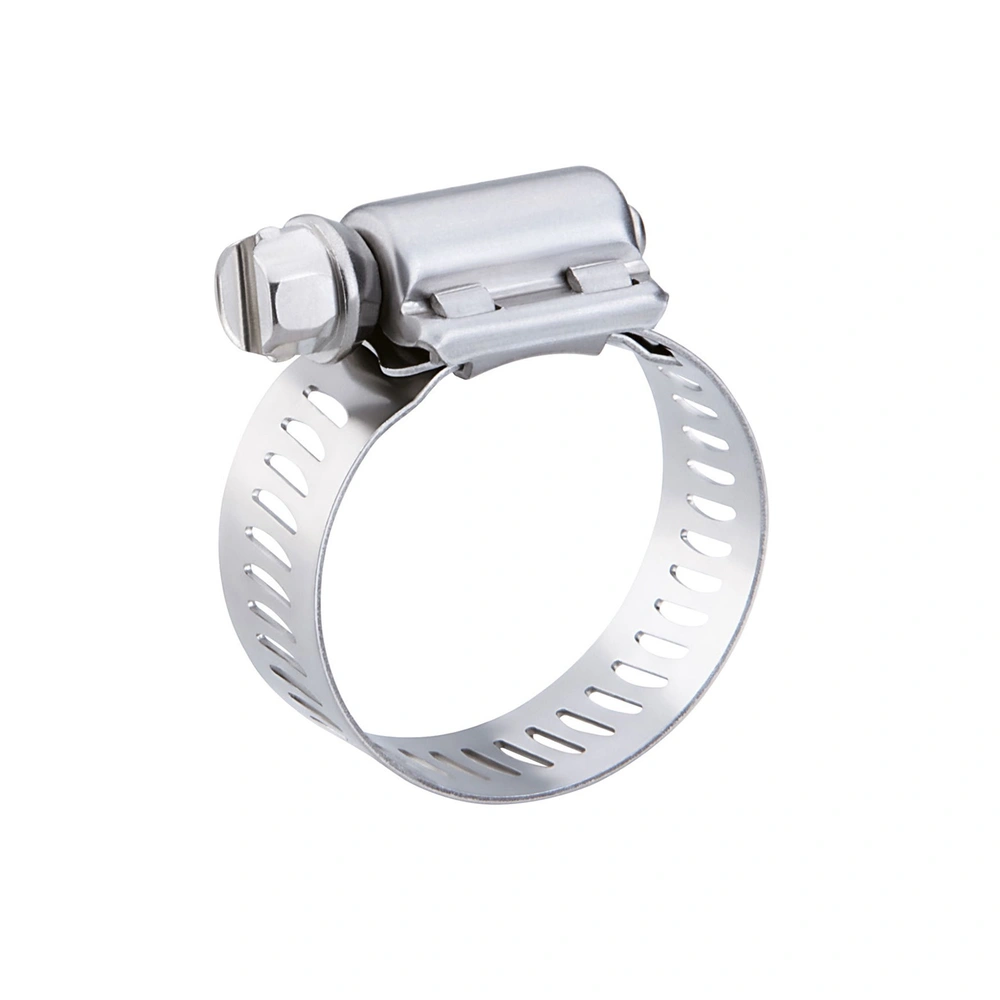

Product Overview – Hose Clamp 2.56 in to 3.50 in
The Hose Clamp 2.56 in to 3.50 in (Part No. OTX-4SC0048) is a worm gear hose clamp with a clamping range of 2-9/16 in to 3-1/2 in (65–89 mm), made for coolant, fuel and air hoses on trucks, buses and off-highway equipment.
The perforated band and worm screw give quick, adjustable clamping across the full range, making this the everyday clamp for coolant, fuel and air hoses.
Construction: a 301 stainless steel band 1/2 in wide, a zinc plated carbon steel screw with a 5/16 in hex, with a torque rating of 45 in-lbs.
It interchanges with 7 aftermarket part numbers from brands such as Automann, Breeze, Excoh, Gates, including Automann 561.20048, Excoh 4SC0048, Gates 32048.
Tip: tighten evenly to the recommended torque and re-check after the first heat cycle.
Need bulk quantities? OneTouch Exim exports heavy-duty clamps to distributors and fleets. Request a quote for OTX-4SC0048 today.
Frequently Asked Questions
Which part numbers does OTX-4SC0048 replace?
OTX-4SC0048 interchanges with Automann 561.20048, Breeze 62048H, Breeze 62048, Excoh 4SC0048, Gates 32048, Tectran HC48 and more. The cross reference table lists all 8 matching numbers.
What hose size does OTX-4SC0048 fit?
It fits hoses with an outside diameter from 2-9/16 in to 3-1/2 in (65–89 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
