SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | 410 STAINLESS STEEL |
| Hex Screw (in) | 1/4" |
| Band Width (in) | 5/16" |
| Torque Range (in-lbs) | 45 |
| SAE | 4 |
| Min. Dia. (in) | 5/32 |
| Max. Dia. (in) | 5/8 |
| Min. Dia. (mm) | 6 |
| Max. Dia. (mm) | 16 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Breeze | 3604 | Aftermarket |
| Excoh | 4SS0004 | Aftermarket |
| Norma | 0360 0103 011 | Aftermarket |
| Norma | 3600103011 | Aftermarket |
| Norma | 03600103011 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Small Fuel, Vacuum & Air Lines |
| Clamp Type | Mini Worm Gear Hose Clamp |
| Clamping Range | 5/32 in to 5/8 in (6–16 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

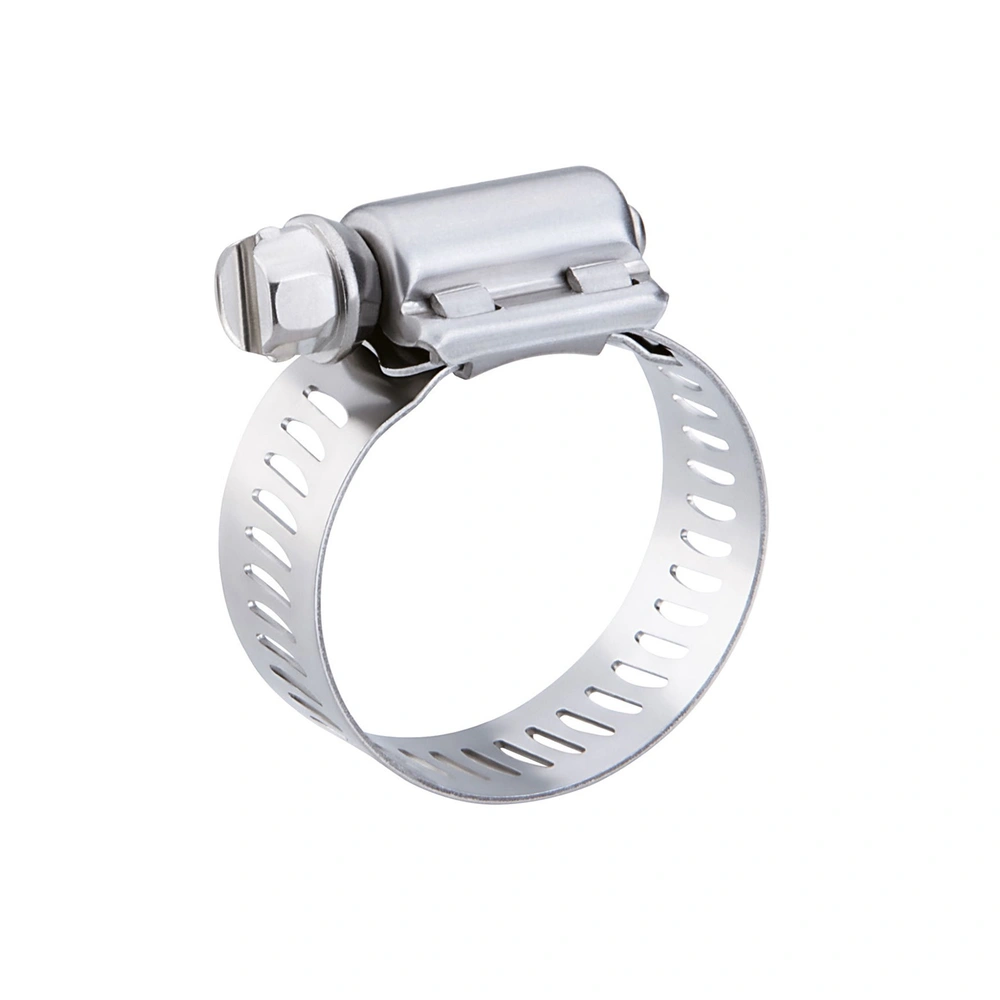

Product Overview – Mini Clamp Stainless Steel All 0.22 in to 0.63 in
Part No. OTX-4SS0004 is a mini worm gear hose clamp that fits hoses from 5/32 in to 5/8 in (6–16 mm), ideal for small fuel, vacuum and air lines in heavy-duty service.
Its compact housing fits tight spaces on small fuel, vacuum and air lines where a full-size clamp will not fit.
Construction: a 301 stainless steel band 5/16 in wide, a 410 stainless steel screw with a 1/4 in hex, with a torque rating of 45 in-lbs.
It interchanges with 4 aftermarket part numbers from brands such as Breeze, Excoh, Norma, including Excoh 4SS0004, Norma 3600103011, Norma 0360 0103 011.
Tip: replace clamps whenever a joint is opened for service; a used clamp may not seal to the same load.
OneTouch Exim supplies the OTX-4SS0004 for fleet, workshop and distributor orders worldwide. Send us your part number for pricing and availability.
Frequently Asked Questions
Which part numbers does OTX-4SS0004 replace?
OTX-4SS0004 interchanges with Breeze 3604, Excoh 4SS0004, Norma 3600103011, Norma 0360 0103 011. The cross reference table lists all 5 matching numbers.
What hose size does OTX-4SS0004 fit?
It fits hoses with an outside diameter from 5/32 in to 5/8 in (6–16 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
