SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | 410 STAINLESS STEEL |
| Hex Screw (in) | 1/4" |
| Band Width (in) | 5/16" |
| Torque Range (in-lbs) | 45 |
| SAE | 6 |
| Min. Dia. (in) | 7/16 |
| Max. Dia. (in) | 25/32 |
| Min. Dia. (mm) | 11 |
| Max. Dia. (mm) | 20 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Breeze | 3606 | Aftermarket |
| Excoh | 4SS0006 | Aftermarket |
| Norma | 0360 0103 016 | Aftermarket |
| Norma | 3600103016 | Aftermarket |
| Norma | 03600103016 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Small Fuel, Vacuum & Air Lines |
| Clamp Type | Mini Worm Gear Hose Clamp |
| Clamping Range | 7/16 in to 25/32 in (11–20 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

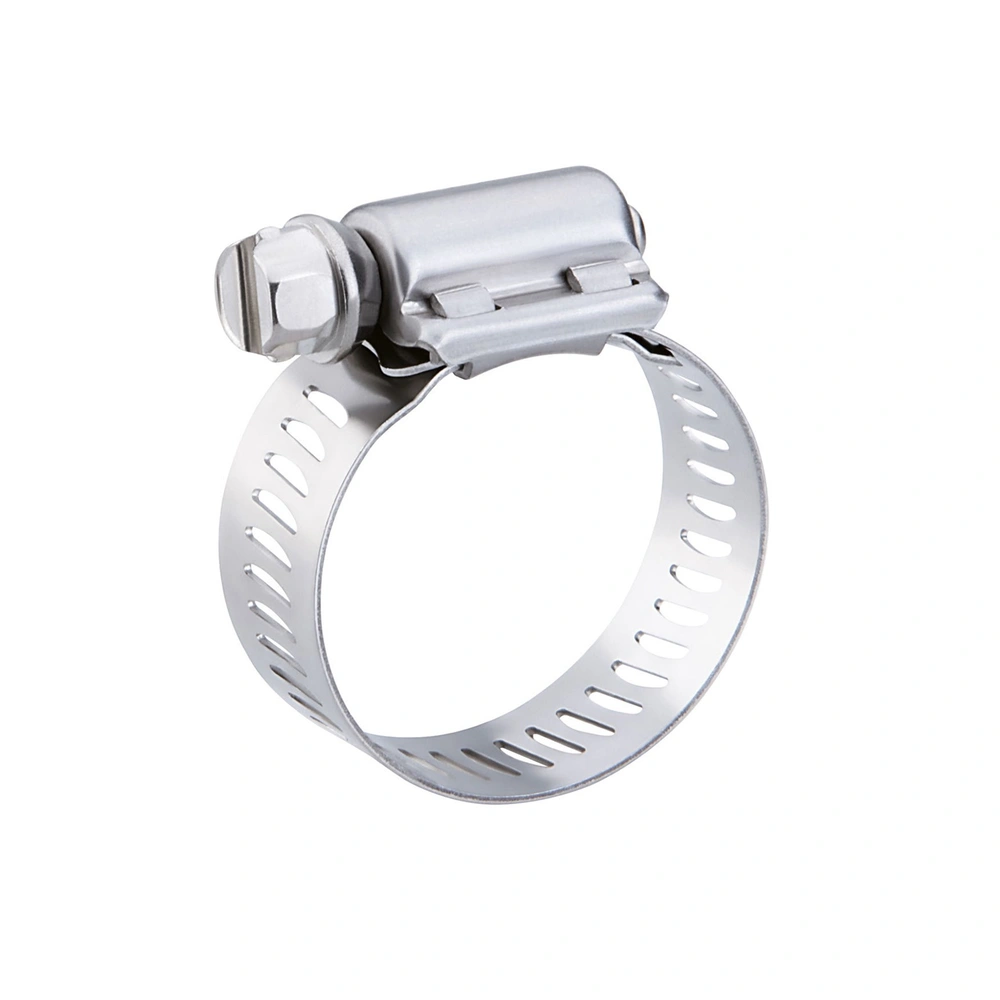

Product Overview – Mini Clamp Stainless Steel All 0.44 in to 0.78 in
When a standard clamp is not enough, the OTX-4SS0006 mini worm gear hose clamp (7/16 in to 25/32 in (11–20 mm)) gives a dependable seal on small fuel, vacuum and air lines.
Mini clamps keep small-diameter lines secure without the bulk of a standard clamp, ideal for fuel, vacuum and instrument lines.
Construction: a 301 stainless steel band 5/16 in wide, a 410 stainless steel screw with a 1/4 in hex, with a torque rating of 45 in-lbs.
Looking for Excoh 4SS0006, Norma 3600103016? OTX-4SS0006 is the matching interchange; see the cross-reference table below for every equivalent number.
Tip: tighten evenly to the recommended torque and re-check after the first heat cycle.
Order the OTX-4SS0006 from OneTouch Exim in single units or bulk cartons; share your quantity and destination for a quick quote.
Frequently Asked Questions
Which part numbers does OTX-4SS0006 replace?
OTX-4SS0006 interchanges with Breeze 3606, Excoh 4SS0006, Norma 3600103016, Norma 0360 0103 016. The cross reference table lists all 5 matching numbers.
What hose size does OTX-4SS0006 fit?
It fits hoses with an outside diameter from 7/16 in to 25/32 in (11–20 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
