SpecificationsCross ReferenceApplicationOverview
Specifications
| Type | Value |
|---|---|
| Housing Material | 301 STAINLESS STEEL |
| Screw Material | ZINC PLATED CARBON STEEL |
| Hex Screw (in) | 5/16″ |
| Band Width (in) | 1/2″ |
| Torque Range (in-lbs) | 25-37 |
| SAE | 6 |
| Min. Dia. (in) | 7/16 |
| Max. Dia. (in) | 25/32 |
| Min. Dia. (mm) | 11 |
| Max. Dia. (mm) | 20 |
Cross References
| Name | Part Number | Type |
|---|---|---|
| Automann | 561.20006 | Aftermarket |
| Automann | 56120006 | Aftermarket |
| Breeze | 62006 | Aftermarket |
| Breeze | H600C | Aftermarket |
| Excoh | 4SCH006 | Aftermarket |
| Gates | 32006 | Aftermarket |
| Murray | H600C | Aftermarket |
| Tectran | HC6 | Aftermarket |
| Velvac | 022306 | Aftermarket |
Application
| Type | Details |
|---|---|
| Application | Coolant, Fuel & Air Hoses |
| Clamp Type | Lined Worm Gear Hose Clamp |
| Clamping Range | 7/16 in to 25/32 in (11–20 mm) |
| Fitment | Universal fit within the stated size; confirm against your OEM or interchange part number. |

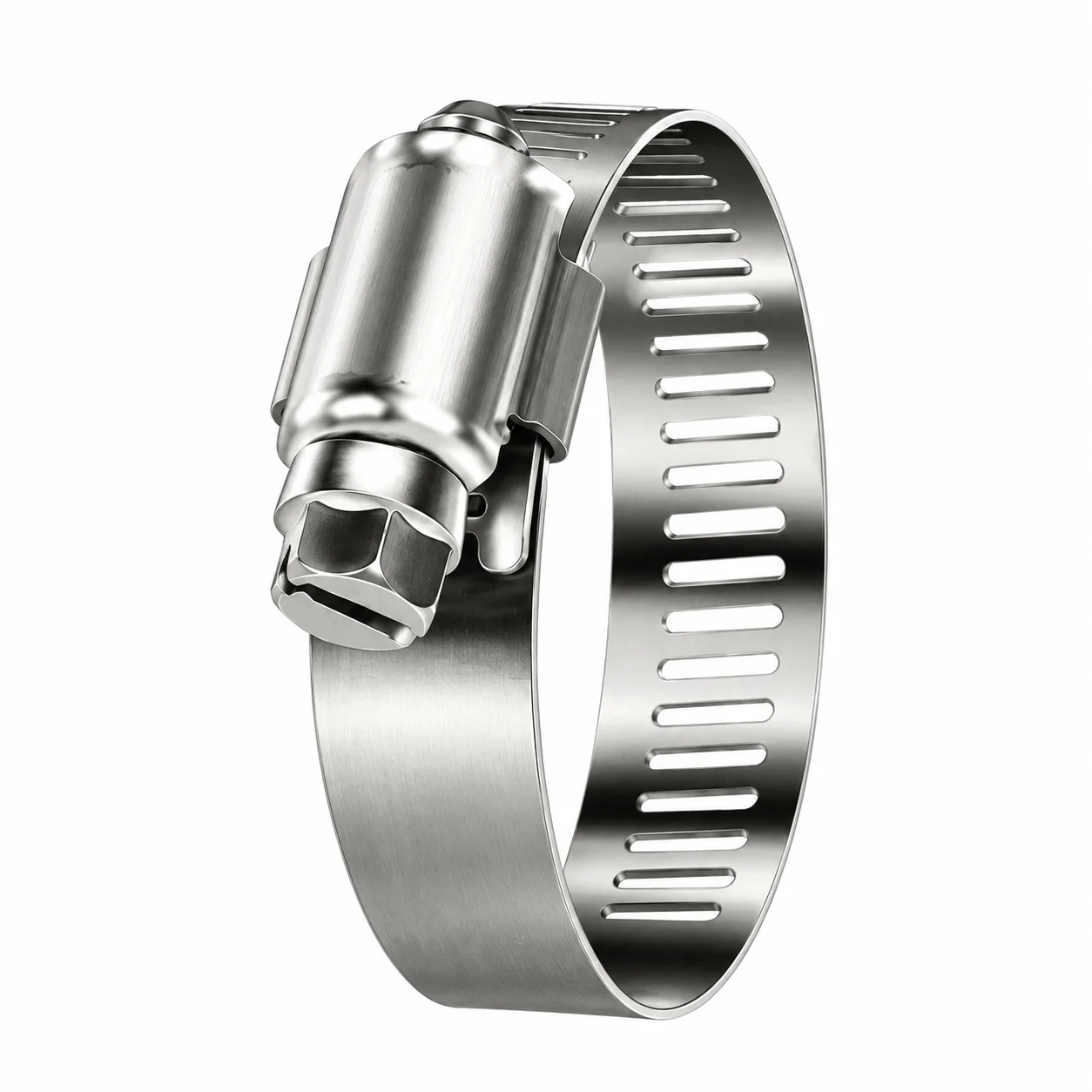

Product Overview – Lined Clamp 0.44 in to 0.78 in
Covering 7/16 in to 25/32 in (11–20 mm), the OTX-4SCH006 lined worm gear hose clamp keeps coolant, fuel and air hoses sealed on trucks, gensets and industrial machinery.
A smooth band underside reduces hose damage while keeping the convenience of a standard worm gear clamp.
Construction: a 301 stainless steel band 1/2 in wide, a zinc plated carbon steel screw with a 5/16 in hex, with a torque rating of 25-37 in-lbs.
It interchanges with 8 aftermarket part numbers from brands such as Automann, Breeze, Excoh, Gates, including Automann 561.20006, Excoh 4SCH006, Gates 32006.
Tip: tighten evenly to the recommended torque and re-check after the first heat cycle.
Distributors and fleet buyers can request volume pricing on OTX-4SCH006 from OneTouch Exim by email or WhatsApp.
Frequently Asked Questions
Which part numbers does OTX-4SCH006 replace?
OTX-4SCH006 interchanges with Automann 561.20006, Breeze H600C, Breeze 62006, Excoh 4SCH006, Gates 32006, Murray H600C and more. The cross reference table lists all 9 matching numbers.
What hose size does OTX-4SCH006 fit?
It fits hoses with an outside diameter from 7/16 in to 25/32 in (11–20 mm).
Manufacturer names and part numbers are used for reference and interchange purposes only. No affiliation with, or endorsement by, these manufacturers is implied.
